Lecture: Study Design & Sampling

Designing studies

Bill Perry

Where We Left Off

Covered last time:

  • What are the assumptions again, and how do you assess them?
  • What to do when assumptions fail:
    • Mann-Whitney Wilcoxon rank-sum test
    • Permutation tests
    • There’s also a paired Wilcoxon signed-rank test — it uses only the sign (+, 0, or −) of each pair’s difference, so it’s possible but not very powerful or widely used

Note

✅ Key idea from last lecture

A good test choice can’t rescue a badly designed study. Today is about the design decisions that come before you ever pick a test.

Photo of a handwritten field notebook page recording site data (site ID, time, depth, GPS coordinates, substrate notes) for three sampling stations, an example of real field-study record-keeping.

Today’s Overview

Today we’ll cover Chapter 1 in Whitlock and Schluter:

  • Study design
  • Causality in ecology
  • Experimental design: replication, controls, randomization, independence
  • Sampling in field studies
  • Power analysis: a priori and post hoc
  • Study design and analysis

Close-up photo of a rock surface with a circular grazed patch (dark, cleared algae in the center) surrounded by a mosaic of ungrazed, algae-covered tiles, illustrating a herbivore grazing-scar pattern from a classic stream ecology study.

Photo of an experimental array of small tiles laid on a streambed, some darker with algal growth and others lighter/grazed clean, used in Lamberti and Resh’s (1983) study of caddisfly grazing effects on periphyton.

Lamberti and Resh 1983

Part 1 · Study Design Fundamentals

Study Design Fundamentals

  • Data analysis has close links to study design
  • Statistics cannot save a poorly designed study!
  • Key question: what is your research question?

Common scientific questions:

  • Spatial/temporal patterns in variable Y? — what are the problems with this data?
  • Effect of factor X on variable Y? — what should you be worried about, and how do you fix it?
  • Are values of variable Y consistent with hypothesis H?
  • What is the best estimate of parameter θ?

Note

📖 Reference

Gotelli & Ellison, A Primer of Ecological Statistics, Ch. 6 — Designing Successful Field Studies.

Published figure comparing a visited tidepool beach (people wading among the rocks) to a restricted no-access beach, each with bar charts of invertebrate density by species and pie charts showing 78.2% of boulders disturbed at the visited beach versus only 1.8% at the restricted beach.

What sort of experiment is this design, and what are the issues with it?

Part 2 · Causality in Ecology

Causality in Ecology — Introduction

  • Common question: what is the cause of Y?
  • Causality is challenging; modern statistics lacks clear language for causality
  • Strength of causal inference varies with study design!
  • Key factor: control of confounding variables, non-independence, and correlated variables

Diagram of three study-design types (observational field study, covariate-controlled field study, randomized controlled experiment) stacked with a downward gradient arrow labeled ‘weak’ at top to ‘strong’ at bottom, showing the strength of causal inference increasing from observational studies to randomized experiments.

Causality in Ecology — Framework

  • Common question: what is the cause of Y?
  • Causality is challenging; modern statistics lacks clear language for causality
  • Strength of causal inference varies with study design
  • Key factor: control of confounding variables, non-independence, and correlated variables

Humorous meme of a dog looking out a window with text joking that its barking is the reason the mail carrier always leaves unharmed (‘I have the power of barking to thank for that’), a lighthearted example of mistaking correlation/coincidence for causation.

Causality Example

Example: Spider and lizard populations on small islands

Hypothesis: On small islands, lizard predation controls spider density

We’re interested in causality. How do we get there?

  • What type of experiment is this?
  • What are the potential problems with testing this hypothesis?

Three-part figure: (A) a scatterplot of spider density versus lizard density showing no relationship (null hypothesis), (B) a scatterplot showing spider density declining as lizard density increases (alternative hypothesis), and a photo below of a lizard eating a spider, illustrating a proposed predation mechanism.

Part 3 · Natural vs. Manipulative Experiments

Natural Experiments

  • Not really experiments at all!
  • Utilizes natural variation in the predictor variable
  • E.g., survey plots across a natural gradient of lizard density

Potential problems:

  • Cannot determine the direction of the cause ↔︎ effect relationship
  • Uncontrolled variables may affect results

Scatterplot of spider density against lizard density across survey plots, showing a clear negative relationship, an example of a natural experiment using existing variation rather than manipulation.

Strengthening Natural Experiments

Good design: stronger inference from natural experiments.

  • Reduce confounding (select plots similar in relevant ways)
  • Adjust for confounding (measure relevant covariates)
  • Identify and measure potential confounding variables

Two causal diagrams: a ‘confounder’ diagram where Moisture has arrows pointing to both Lizard density and Spider density (a third variable driving both), and a ‘mediator’ diagram where Moisture points to Lizard density which in turn points to Spider density (an indirect causal chain).

Manipulative Experiments

The experimenter directly manipulates the predictor variable and measures the response.

Randomized, controlled trials: the gold standard.

Challenges:

  • Often restricted to small “plots”; a scale-replication trade-off
  • Often restricted to small, short-lived organisms
  • Often limited to a small number of treatments; a treatment-replication trade-off
  • Still requires careful control of confounding variables!

Aerial photo of a large grid of manipulated experimental field plots surrounded by forest, part of the Cedar Creek Ecosystem Science Reserve’s long-term biodiversity experiments.

Cedar Creek Ecosystem Science Reserve

Part 4 · Experimental Design Principles

Experimental Design Principles

Main problem of study design & interpretation: confounding variables.

  • Is the result due to X, or other factors?

Good study design seeks to eliminate confounding through:

  • Replication
  • Randomization
  • Controls
  • Independence

Diagram of a confounding variable Z with arrows pointing to both X and Y, illustrating that a third variable can drive an apparent relationship between the two variables of interest.

Replication

Replication is important because:

  • Ecological systems are variable
  • Many statistical methods need an estimate of that variability

Without appropriate replication: is the difference due to the manipulation, or something else?

Warning

⚠️ Watch out!

Replication must be on the appropriate scale — match the scale of replication to the population of interest, or you’ll run into pseudoreplication (Hurlbert 1984, Pseudoreplication and the Design of Ecological Field Experiments).

The same tile-array photo repeated, shown here as an example of replicated experimental units on a streambed.

Replication Examples

  • Example 1: Effects of forest fire on soil invertebrate diversity — replicate samples from burnt and unburnt parts of a single forest. What hypothesis is this design addressing?
  • Example 2: Effects of copper on barnacle settling — 2 aquaria (+Cu, control), 5 settling plates in each. Are settling plates replicates?
  • Example 3: Effects of sewage discharge on water quality — 10 water samples above discharge, 10 below. Are samples replicates?

Map showing the burned area of the ‘Camp House Fire’ as an orange shape near Brimson, Minnesota, with roads and nearby towns labeled, illustrating a real forest-fire footprint for the burnt-versus-unburnt forest replication example.

Consequences of Pseudoreplication

When you pseudoreplicate, you:

  • Underestimate variability
  • Increase the Type I error rate

Replicates must be on a scale appropriate to the population (and hypothesis!) of interest:

  • Different burnt/unburnt forest areas
  • Different aquaria
  • Different plants and streams

Diagram of an aquarium tank containing a fish, a shelter labeled (a), prey items labeled (b), and a barrier or structure labeled (c), used to illustrate the barnacle/copper-aquaria pseudoreplication example where settling plates within the same tank are not true replicates.

When Replication Is Difficult

What if replication is impossible, difficult, or expensive?

Example: effect of temperature on phytoplankton growth — 4 chambers (5, 10, 15, 20°C), 10 beakers in each. Are beakers true replicates?

Possible solutions:

  • Rerun the experiment a few times, changing the temperature of chambers — block by time
  • Try to account for all possible differences between chambers (light levels, humidity, contamination) — block by chamber

Aerial photo of an outdoor research facility with about 20 large circular tanks (mesocosms) arranged in a grid on gravel, plus additional smaller tanks in the background, illustrating replicated temperature-controlled growth chambers.

Controls or Reference?

Key question: is the response due to the manipulation/hypothesized mechanism, or an external factor?

Controls help address this question:

  • Experimental units treated exactly as the manipulated units, except for the manipulation under investigation
  • Can be tricky to implement; requires careful thought

Examples:

  • In toxicology, controls and treatment groups must both be injected, but the control does not receive the substance under study
  • Predator exclosures often produce “cage effects” — you need two controls: a grazer/predator control and a “cage control”

Three underwater photos on a coral reef: (a) a PVC-pipe apparatus with bait attached near the coral, and (b)-(c) a mesh cage/exclosure structure being lowered over the setup, illustrating a predator-exclusion control used to separate manipulation effects from confounds like cage artifacts.

Activity: Designing Controls

Warning

Activity: designing controls for pine experiments

Work in small groups to design appropriate controls for each experiment:

  1. Testing whether pine needle length is affected by a particular fertilizer
  2. Testing whether pine needle density affects water retention during drought, using enclosed branches
  3. Testing whether sunlight exposure affects pine seedling growth, using shade cloth

For each experiment, identify:

  • What would be appropriate controls?
  • What factors need to be controlled besides the main variable?
  • Could there be “cage effects” or similar issues to consider?

Independence

Independence of observations is an assumption of many statistical methods. Events are independent if the occurrence of one has no effect on the occurrence of another.

  • E.g., offspring of one mother for treatment, offspring of another for control

Temporal/spatial autocorrelation: a violation of independence.

  • Values of variables at a certain place/time are correlated with values at another place/time
  • “Everything is related to everything, but near things are more related than distant things”
  • Special methods exist to adjust for autocorrelation

Photo of a mother rat nursing a litter of newborn pups, illustrating the independence example: offspring from one mother are not independent replicates of each other.

Randomization

Randomization helps deconfound “lurking” variables — it attempts to equalize the effects of confounders.

Random sampling from a population:

  • Experimental units should represent a random sample from the population of interest
  • Ensures unbiased population estimates and inference
  • E.g., animals in an experiment are a random subset of all animals that could have been used

Diagram of a shoreline (land at bottom, water at top) with shaded squares labeled E (experimental) and unshaded squares labeled C (control) interspersed randomly across the plots, illustrating random assignment of units to treatment and control.

Randomization in Practice

Allocation of experimental units to treatment/control:

  • Experimental units must have an equal chance of being allocated to control or experimental group
  • Properly done by random number generation

Randomization is essential at two levels:

  • Random selection from the population
  • Random assignment to treatments
  Treatment Control
1        18      49
2        74     100
3        65      47
4        24      71
5        25      89

Part 5 · Sampling Design in Field Studies

Sampling Design — Simple Random

Simple random design:

  • All individuals/sampling units have an equal chance of being selected
  • Assign a number to all possible units, select units using a random number generator
  • Often tricky in ecology; haphazard sampling is a common (imperfect) alternative
  • Most population estimates and tests assume random sampling

Note

📖 Reference

Gotelli & Ellison, Ch. 7 — A Bestiary of Experimental and Sampling Designs, covers all four sampling designs on this and the following three slides.

Diagram of a blue lake with black squares scattered haphazardly throughout the water, illustrating simple random sampling where every point has an equal chance of being sampled.

Sampling Design — Stratified

Stratified designs: if there are distinct strata (groups) in the population, you may want to sample each independently.

  • Samples collected from each stratum randomly, n proportional to the “size” of the stratum
  • Means and variances need to be estimated using a different procedure; strata are included in the model

Diagram of a lake divided into three concentric depth strata (shallow green, mid-depth light blue, deep dark blue), with sample points scattered within each stratum, illustrating stratified random sampling.

Sampling Design — Cluster

Cluster designs:

  • Focus on sampling subunits nested in larger units
  • Used when other designs are impractical (e.g., due to cost)
  • Mean calculation is easy; variance needs a modified procedure
  • Nested ANOVA is often the appropriate analytical method

Diagram of a lake with four red circles marking clusters, each containing three sample points, positioned around the shoreline, illustrating cluster sampling where whole groups near a location are sampled together.

Sampling Design — Systematic

Systematic designs:

  • Sampling units evenly dispersed — “transect” sampling is common in ecology
  • Used to determine changes along a gradient
  • Risk: might coincide with some natural pattern

Diagram of a lake with sample points evenly spaced in a grid-like pattern across the water, illustrating systematic sampling along a regular interval rather than at random locations.

Activity: Field Sampling Pine Trees

Note

Activity: field sampling pine trees

Let’s consider sampling pine needles across campus:

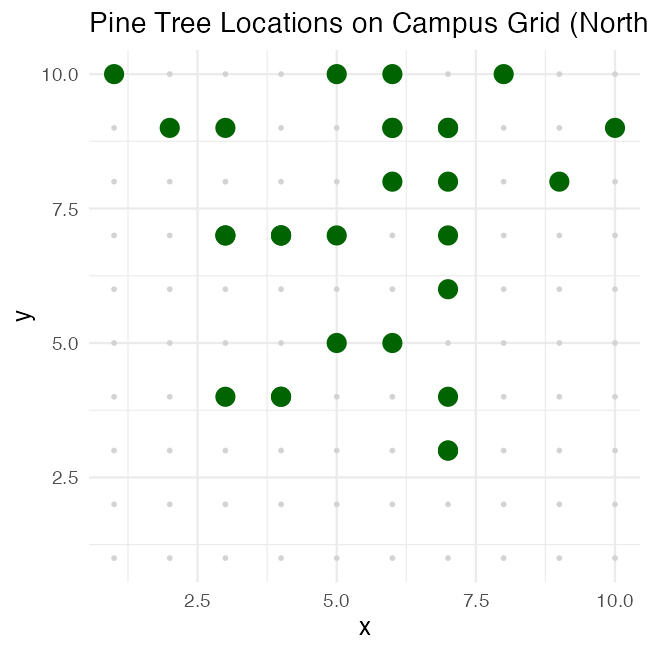

Scatterplot of a 10-by-10 campus grid with light grey points marking all grid locations and dark green points marking simulated pine tree locations, which are clustered toward the north (higher y-values) side of campus.

In groups of 3–4, design a sampling strategy to:

  1. Estimate average needle length across campus (simple random sampling)
  2. Compare needle lengths between north and south campus areas (stratified sampling)
  3. Study how needle length changes with distance from the main road (systematic sampling)

For each strategy, describe:

  • How many samples you would take
  • Where you would take them
  • What additional variables you might measure

Part 6 · Power Analysis

Power Analysis Wrap-Up

  • Power is an important aspect of experimental design:
    • Low power → higher likelihood of Type II error (1 − β)
    • A study’s power tells us how likely we are to see an effect if one really exists
  • Power analysis can be used:
    • Before the experiment (a priori): how many samples do we need? What effect size can we detect?
    • After the experiment (post hoc): was a finding of no effect due to a lack of true effect, or poor design?
  • Power is a function of: effect size (ES), sample size (n), standard deviation (σ), and α (typically 0.05)

\[\text{Power} \propto \frac{ES \cdot \alpha \cdot \sqrt{n}}{\sigma}\]

Note

📖 Reference

Whitlock & Schluter, Ch. 14 — Designing Experiments, covers planning the sample size needed for a study.

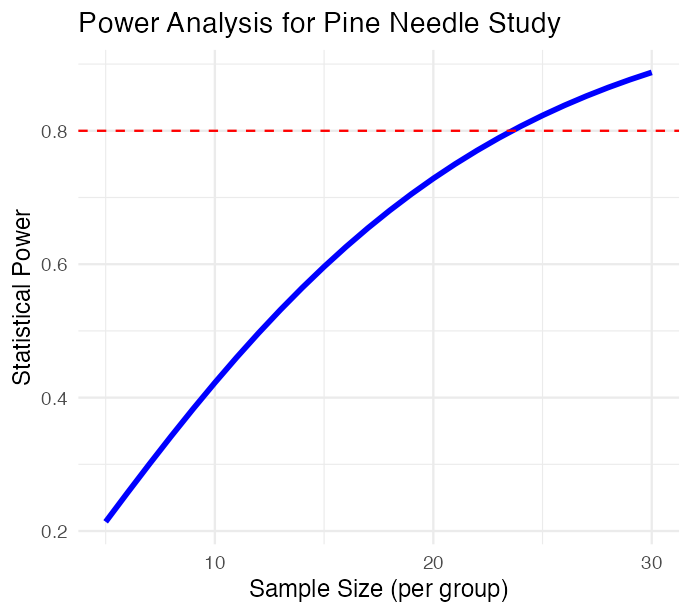

A Priori Power Analysis

Using power analysis to plan experiments:

  • Sample size calculation: how many samples will be needed? Need to know: desired power, variability, significance level, effect size.
  • Effect size calculation: what kind of effect can we find, given a particular design? Need to know: desired power, variability, significance level, n.

Cohen’s d — a standardized measure of effect size, particularly for comparing two means:

  • 0.2 = small effect, 0.5 = medium effect, 0.8 = large effect

Tip

📖 Why standardize?

Cohen’s d helps determine the practical significance of a finding, as opposed to just statistical significance (p-values). A Cohen’s d of 0.8 means the groups differ by 0.8 standard deviations — large enough to be substantial in practical terms.

A Priori Power Analysis — Example

How many samples do you need to find this difference?

# A priori power analysis for t-test
# How many samples needed per group?
effect_size <- 0.8  # Cohen's d
significance <- 0.05
desired_power <- 0.8

pwr.t.test(d = effect_size,
           sig.level = significance,
           power = desired_power,
           type = "two.sample")

     Two-sample t test power calculation

              n = 25.52458
              d = 0.8
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: n is number in *each* group

Tip

🖐 Notice

pwr.t.test() solves for whichever argument you leave out — here, n. Leave out a different argument (e.g., power) and it solves for that instead.

Post Hoc Power Analysis

  • Imagine you did not reject the null hypothesis — is the result still worth publishing?
  • Is a non-significant result due to low power (poor design), or an actual no-effect situation?
    • You have n and an estimate of σ
    • You need to define the effect size you wanted to detect
    • In return, you get an estimate of the experiment’s power
  • Cohen’s d is calculated as: d = (Mean1 − Mean2) / SD_pooled

Tip

🖐 Why it matters

Post hoc power can help convince reviewers that you are a good experimenter, but there really is no effect — please publish my non-significant finding!

Post Hoc Power Analysis — Example

# Post hoc power analysis
# If we had n = 20 per group
effect_size <- 0.5  # Medium effect size
significance <- 0.05
sample_size <- 20  # per group

pwr.t.test(n = sample_size,
           d = effect_size,
           sig.level = 0.05,
           type = "two.sample")

     Two-sample t test power calculation

              n = 20
              d = 0.5
      sig.level = 0.05
          power = 0.337939
    alternative = two.sided

NOTE: n is number in *each* group

Note

✅ Key idea

Same function as a priori power analysis — pwr.t.test() — just with n supplied and power left out to solve for instead.

Activity: Power Analysis for a Pine Needle Experiment

Important

Activity: power analysis for a pine needle experiment

Let’s design a study to compare needle lengths between exposed and sheltered pine trees:

# Based on pilot data, we have these estimates:
exposed_mean <- 75    # mm
sheltered_mean <- 85  # mm
pooled_sd <- 12        # mm

effect_size <- abs(exposed_mean - sheltered_mean) / pooled_sd
effect_size
[1] 0.8333333
pwr.t.test(d = effect_size,
           sig.level = 0.05,
           power = 0.8,
           type = "two.sample")

     Two-sample t test power calculation

              n = 23.60467
              d = 0.8333333
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: n is number in *each* group

Activity: Power Curve Visualization

Important

Activity: power analysis for a pine needle experiment

Line plot of statistical power versus sample size per group (5 to 30), rising from low power at small sample sizes toward 1 as sample size increases, with a dashed red horizontal reference line at 80% power marking the sample size needed to reach adequate power.

Questions:

  1. How many trees should we sample to achieve 80% power?
  2. If we can only sample 5 trees per group, what is our power?
  3. How would increasing variability (SD) affect our sample size requirements?

Part 7 · Wrap-Up

Study Design and Analysis

  • Study design is closely linked to statistical analysis
  • Recall: categorical vs. continuous variables; dependent vs. independent variables
  • The nature of your variables dictates the analytical approach:
    • Match your analysis to your design
    • You cannot “fix” a poor design with fancy statistics

Two stacked plots: statistical power rising with effect size and leveling off near 1.0, with a dashed line marking 80% power at an effect size around 23; and detectable effect size dropping steeply as the number of replicates increases, with a dashed line showing the same effect size achievable at about 23 replicates, illustrating the tradeoff between sample size and detectable effect size.

Summary and Take-Home Messages

Key concepts we covered today:

  1. Study design is critical — statistics cannot save poor design
  2. Natural vs. manipulative experiments — different approaches to causality
  3. Principles of good design: replication at the right scale, proper randomization, appropriate controls, independence
  4. Power analysis — planning for sufficient sample size
  5. Match analysis to design — your statistical approach should follow from your experimental design

Important

Remember:

  • Correlation ≠ causation
  • Beware of pseudoreplication
  • Design before you collect data
  • Consider practical constraints
  • Report everything transparently

References and Additional Resources

  • Gotelli, N. J., & Ellison, A. M. (2012). A Primer of Ecological Statistics (2nd ed.). Sinauer Associates.
  • Hurlbert, S. H. (1984). Pseudoreplication and the design of ecological field experiments. Ecological Monographs, 54(2), 187–211.
  • Quinn, G. P., & Keough, M. J. (2002). Experimental Design and Data Analysis for Biologists. Cambridge University Press.
  • Zuur, A. F., Ieno, E. N., & Elphick, C. S. (2010). A protocol for data exploration to avoid common statistical problems. Methods in Ecology and Evolution, 1(1), 3–14.
