Lecture: Analysis of Variance (ANOVA)

Single-factor ANOVA

One-way ANOVA and its connection to regression: partitioning sums of squares, the F-ratio, assumptions and diagnostics, post-hoc testing, reporting, and non-parametric alternatives (Kruskal-Wallis, Dunn’s test) — on a circadian-rhythm light-treatment dataset.

Where We Left Off

Covered last time — Multiple Regression:

• The MLR model, regression parameters
• Analysis of variance for regression
• Null hypotheses, explained variance
• Assumptions and diagnostics
• Collinearity, interactions, dummy variables
• Model selection, importance of predictors

Note

✅ Key idea from last lecture

You already built an ANOVA table for a regression — you just called it “analysis of variance for regression.” Today we apply the exact same machinery to categorical predictors.

XKCD comic ‘Linear Regression’: a scatterplot of scattered points with a nearly flat fitted regression line labeled R-squared = 0.06 next to the same points connected into a constellation-like stick figure labeled ‘Rexthor, the Dog-Bearer’, captioned ‘I don’t trust linear regressions when it’s harder to guess the direction of the correlation from the scatter plot than to find new constellations on it.’

Part 1 · ANOVA Overview

Today’s Objectives

ANOVA: analysis of variance, single-factor today, multi-factor to come.

• Predictor variables: fixed
• The ANOVA model
• Analysis and partitioning of variance
• Null hypothesis
• Assumptions and diagnostics

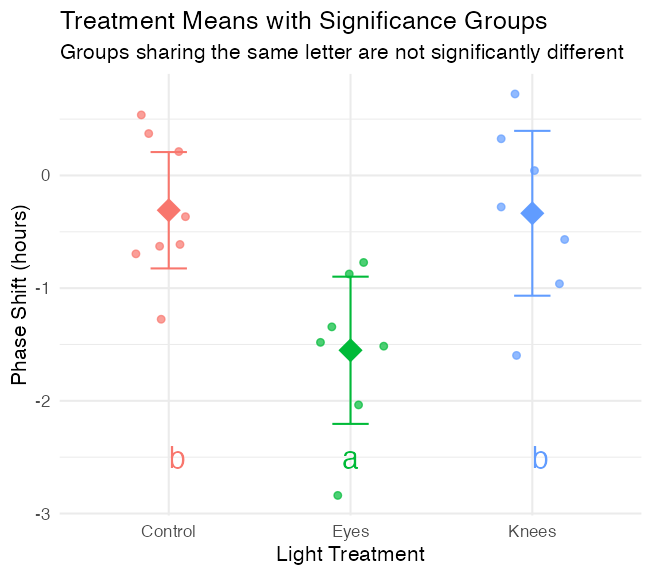

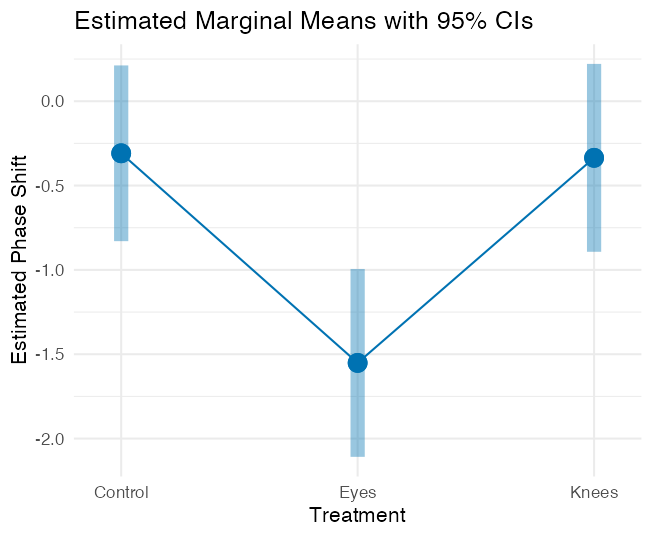

• Post-hoc tests — Tukey and others
• Reporting the results
• Mixed-model ANOVA — random effects

Note

📖 Reference

Gotelli & Ellison, A Primer of Ecological Statistics, Ch. 10 — The Analysis of Variance, is the core reference for this lecture.

What if the response is continuous and the predictor(s) categorical?

	Continuous X	Categorical X
Continuous Y	Regression	ANOVA
Categorical Y	Logistic regression

Part 2 · ANOVA and Regression Connection

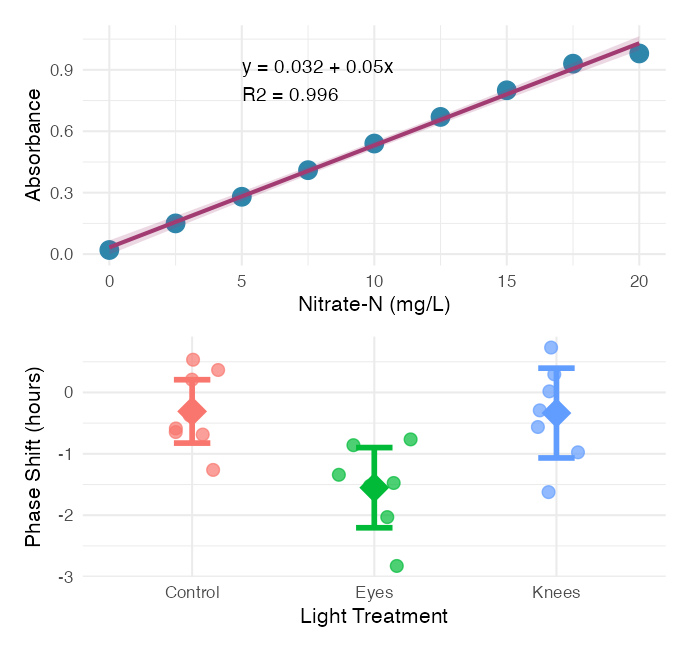

ANOVA and Regression Connection

Both regression and ANOVA:

• Partition the total variation in Y
• Use F-tests for significance, where one MS is divided by another

Regression:

• Form: \(Y = \beta_0 + \beta_1X + \varepsilon\) — Y is the response, β₀ the intercept, β₁ the slope, X the predictor, ε the error
• Test: \(H_0: \beta_1 = 0\) — rejecting means X significantly predicts Y

ANOVA:

• Form: \(Y_{ij} = \mu + A_i + \varepsilon_{ij}\) — \(Y_{ij}\) is observation j in group i, μ the grand mean, \(A_i\) the effect of group i, ε the error
• Test: \(H_0: \mu_1 = \mu_2 = ... = \mu_k\) — rejecting means at least one group differs

The Same Partitioning, Two Kinds of Predictor

General method for partitioning variation in a continuous dependent variable:

• One or more continuous (and categorical) predictors → regression
• One or more categorical predictors → ANOVA
• Categorical predictor variables represent groups or experimental treatments

ANOVA as Regression

Tip

ANOVA as regression

With one categorical variable, ANOVA is equivalent to regression with dummy variables. In fact, when we run ANOVAs we use the same code as for regression!

regression: model <- lm(response ~ predictor, data = df) anova: model <- lm(response ~ factor, data = df)

Part 3 · ANOVA Goals and Logic

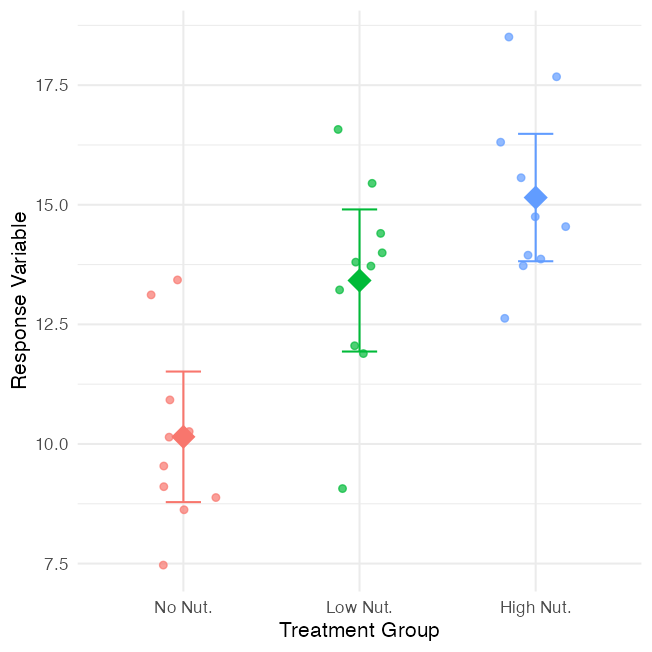

ANOVA Goals

ANOVA aims to compare means of groups:

• Attributes contribution of predictors + “error” to variability
• Tests H₀ that population (random effects) or group (fixed effects) means are equal
• Single factor (1-way) and multifactor (2-, 3-way designs)
  • Single factor: one factor with more than two levels
• Multifactor: two or three factors with two or more levels each — examines variation due to factors AND their interaction

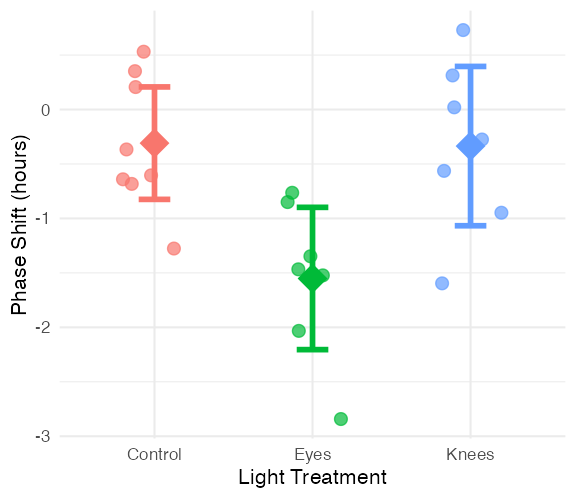

Analysis of Variance

Analysis of variance is the most powerful approach known for simultaneously testing if the means of k groups are equal — it works by assessing whether individuals chosen from different groups are, on average, more different than individuals chosen from the same group.

The null hypothesis of ANOVA is that the population means μᵢ are the same for all treatments.

• H₀: μ₁ = μ₂ = … = μₖ
• H₁: at least one μᵢ is different from the others

Rejecting H₀ in ANOVA is evidence that the mean of at least one group is different from the others — it does not indicate which means differ.

ANOVA Logic

Even if all groups had the same true mean, the data would likely show different sample means for each group due to sampling error.

The key insight of ANOVA: we can estimate how much variation among group means ought to be present from sampling error alone if H₀ is true. ANOVA lets us determine whether there is more variance among the sample means than expected by chance alone. If so, we infer real differences among the population means.

Two key measures of variation are calculated and compared:

1. Group mean square (\(MS_{groups}\)) — variation among subjects from different groups
2. Error mean square (\(MS_{error}\)) — variation among subjects within the same group

\[F = \frac{MS_{groups}}{MS_{error}}\]

Part 4 · Partitioning the Sum of Squares

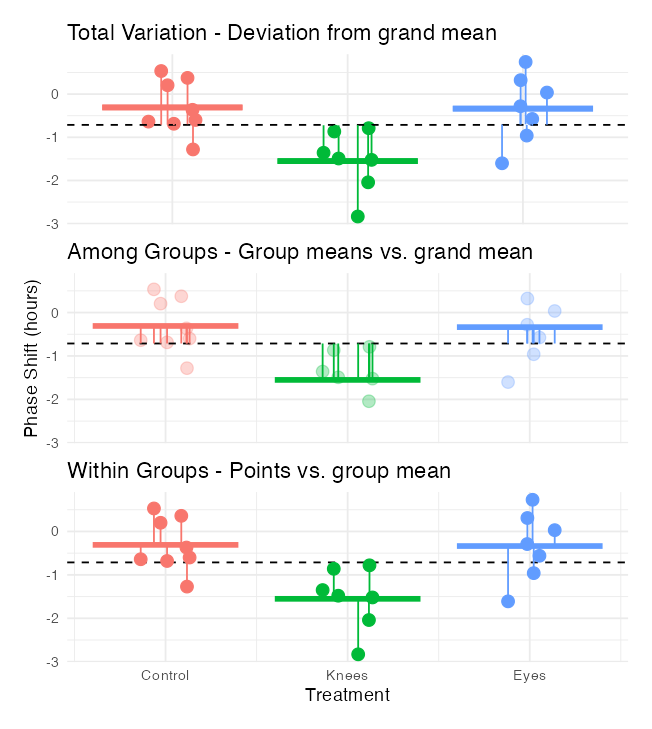

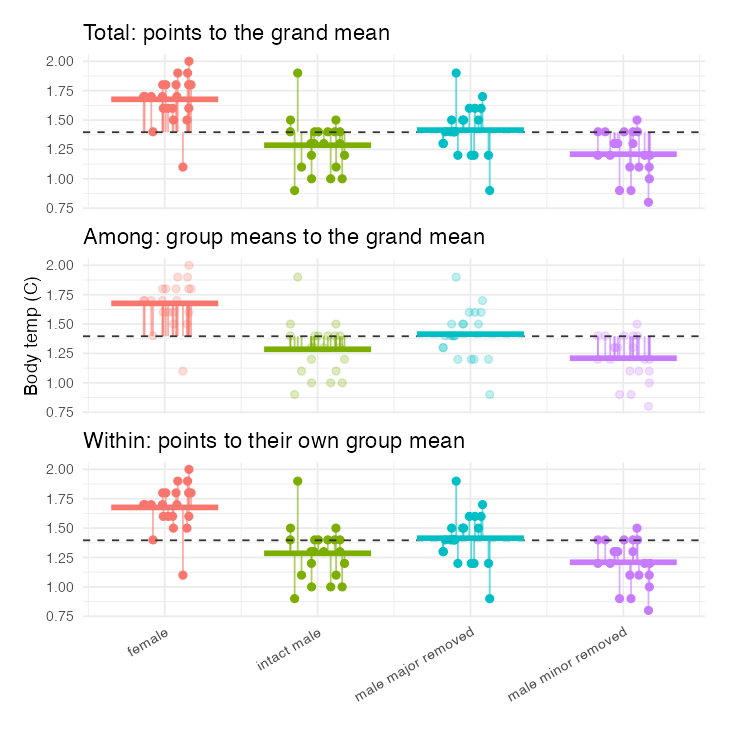

Partitioning the Sum of Squares

The total variation in Y can be expressed as a sum of squares:

\[SS_{total} = \sum_{i=1}^{a}\sum_{j=1}^{n}(Y_{ij} - \bar{Y})^2\]

This can be partitioned into two components:

1. Among Groups (Treatment): \(SS_{among} = n\sum_{i=1}^{a}(\bar{Y}_i - \bar{Y})^2\)
2. Within Groups (Error): \(SS_{within} = \sum_{i=1}^{a}\sum_{j=1}^{n}(Y_{ij} - \bar{Y}_i)^2\)

These components are additive: \(SS_{total} = SS_{among} + SS_{within}\)

A Worked Sum-of-Squares Example

Call:
lm(formula = phase_shift ~ treatment, data = circ_data)

Residuals:
     Min       1Q   Median       3Q      Max
-1.27857 -0.36125  0.03857  0.61147  1.06571

Coefficients:
               Estimate Std. Error t value Pr(>|t|)
(Intercept)    -0.30875    0.24888  -1.241  0.22988
treatmentEyes  -1.24268    0.36433  -3.411  0.00293 **
treatmentKnees -0.02696    0.36433  -0.074  0.94178
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.7039 on 19 degrees of freedom
Multiple R-squared:  0.4342,    Adjusted R-squared:  0.3746
F-statistic: 7.289 on 2 and 19 DF,  p-value: 0.004472

Analysis of Variance Table

Response: phase_shift
          Df Sum Sq Mean Sq F value   Pr(>F)
treatment  2 7.2245  3.6122  7.2894 0.004472 **
Residuals 19 9.4153  0.4955
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Important

Key connection to regression

This is the same partitioning we saw in regression analysis:

\[SS_{total} = SS_{regression} + SS_{residual}\]

• \(SS_{among}\) in ANOVA = \(SS_{regression}\) in regression
• \(SS_{within}\) in ANOVA = \(SS_{residual}\) in regression

Both measure how much variation is explained by our model vs. unexplained (error).

The ANOVA Table

The ANOVA table organizes all computations leading to a test of the null hypothesis of no differences among population means.

• Source of variation — what is being tested
• Sum of squares — total variation for each source
• df — degrees of freedom for each source
• Mean squares — sum of squares divided by df
• F-ratio — ratio of mean squares, used to test significance
• P-value — probability of observing our results if H₀ is true

Example: for a one-way ANOVA with 3 groups and 4 replicates per group: df(treatments) = a − 1 = 2, df(error) = a(n − 1) = 3(4 − 1) = 9, df(total) = an − 1 = 11

Call:
lm(formula = phase_shift ~ treatment, data = circ_data)

Residuals:
     Min       1Q   Median       3Q      Max
-1.27857 -0.36125  0.03857  0.61147  1.06571

Coefficients:
               Estimate Std. Error t value Pr(>|t|)
(Intercept)    -0.30875    0.24888  -1.241  0.22988
treatmentEyes  -1.24268    0.36433  -3.411  0.00293 **
treatmentKnees -0.02696    0.36433  -0.074  0.94178
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.7039 on 19 degrees of freedom
Multiple R-squared:  0.4342,    Adjusted R-squared:  0.3746
F-statistic: 7.289 on 2 and 19 DF,  p-value: 0.004472

Analysis of Variance Table

Response: phase_shift
          Df Sum Sq Mean Sq F value   Pr(>F)
treatment  2 7.2245  3.6122  7.2894 0.004472 **
Residuals 19 9.4153  0.4955
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

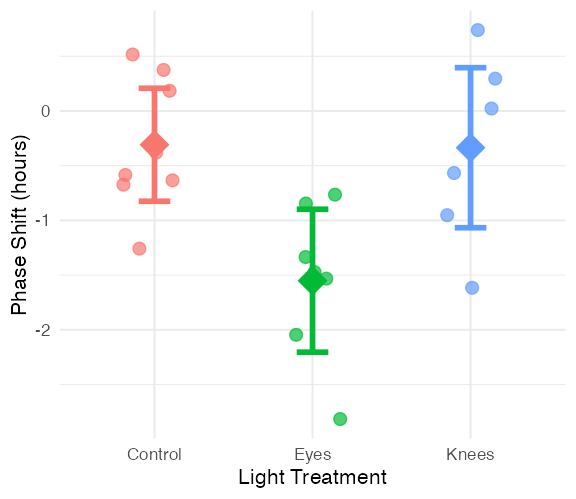

# A tibble: 3 × 4
  treatment   Mean    SD     N
  <fct>      <dbl> <dbl> <int>
1 Control   -0.309 0.618     8
2 Eyes      -1.55  0.706     7
3 Knees     -0.336 0.791     7

Comparing ANOVA and Regression Tables

Important

ANOVA table:

Source	df	SS	MS	F	p
Treatment	a-1	SS_treatment	MS_treatment	F	p
Error	a(n-1)	SS_error	MS_error
Total	a*n-1	SS_total

Is equivalent to an ANOVA table from a regression model:

Source	df	SS	MS	F	p
Regression	k	SS_regression	MS_regression	F	p
Error	n-k-1	SS_residual	MS_residual
Total	n-1	SS_total

Where k = number of predictor/dummy variables = a − 1, and a = treatment groups/levels of factors.

Part 5 · The F-Ratio

The F-Ratio

\[F = \frac{MS_{among}}{MS_{error}}\]

• Under H₀ (all means equal): the F-ratio should be approximately 1
• Larger F-ratios suggest among-group variance exceeds what’s expected by chance
• With the circadian rhythm data: F = 7.29, p = 0.004 — we reject H₀

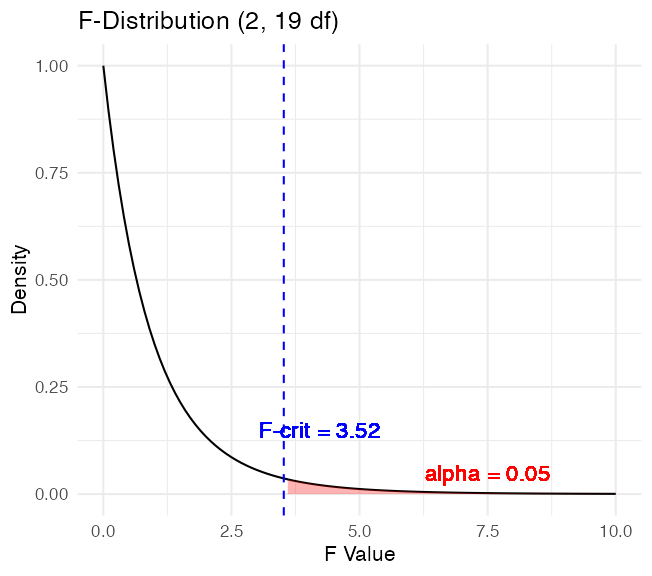

• The F-ratio follows an F-distribution with (a − 1) and a(n − 1) df

# A tibble: 2 × 2
  Metric                    Value
  <chr>                     <dbl>
1 F-observed                 7.29
2 F-critical (alpha = 0.05)  3.52

Connection of an F-Test to a T-Test

An ANOVA with two groups (a = 2) is equivalent to a t-test — why F = t²? Both test the same hypothesis: are the means of two groups different?

• The t-statistic: \(t = \frac{\bar{X}_1 - \bar{X}_2}{SE_{difference}}\) — measures how many standard errors apart the two means are, and can be + or −
• The F-statistic: \(F = \frac{MS_B}{MS_W}\) — the ratio of variance between groups to variance within groups
• Unlike t, F is always non-negative (it’s a ratio of squared quantities)

The mathematical connection:

• Both measure the same signal-to-noise ratio — numerators capture the difference between groups (signal), denominators capture variability within groups (noise)
• With two groups: \(MS_B\) relates directly to \((\bar{X}_1 - \bar{X}_2)^2\), and \(MS_W\) relates to the pooled variance
• Degrees of freedom match up too: t-test df = n₁ + n₂ − 2; F-test df₁ = 1 (numerator), df₂ = n₁ + n₂ − 2 (denominator)
• An F-distribution with df₁ = 1 is the square of a t-distribution with df₂

Why This Matters — ANOVA Generalizes the T-Test

• Shows ANOVA is actually a generalization of the t-test
• When a = 2, you get the same result either way
• But ANOVA extends naturally to comparing three or more groups — you can’t do that directly with a t-test without running into multiple-comparison problems

Using circ_data (Control vs Knees groups):
 t-statistic: 0.0741
 t^2: 0.0055
 F-statistic: 0.0055
 Difference (should be ~0): 0

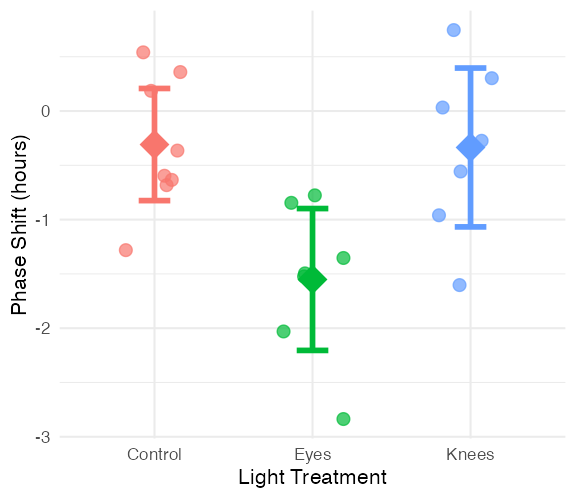

F-Ratio, Confirmed on the Full Model

\[F = \frac{MS_{among}}{MS_{error}}\]

• Under H₀ (all means equal), the F-ratio should be ≈ 1
• Larger F-ratios suggest among-group variance exceeds chance
• With the circadian rhythm data: F₂,₁₉ = 7.29, p = 0.004 — we reject H₀
• The F-ratio follows an F-distribution with (a − 1) and a(n − 1) df

Call:
lm(formula = phase_shift ~ treatment, data = circ_data)

Residuals:
     Min       1Q   Median       3Q      Max
-1.27857 -0.36125  0.03857  0.61147  1.06571

Coefficients:
               Estimate Std. Error t value Pr(>|t|)
(Intercept)    -0.30875    0.24888  -1.241  0.22988
treatmentEyes  -1.24268    0.36433  -3.411  0.00293 **
treatmentKnees -0.02696    0.36433  -0.074  0.94178
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.7039 on 19 degrees of freedom
Multiple R-squared:  0.4342,    Adjusted R-squared:  0.3746
F-statistic: 7.289 on 2 and 19 DF,  p-value: 0.004472

Anova Table (Type II tests)

Response: phase_shift
          Sum Sq Df F value   Pr(>F)
treatment 7.2245  2  7.2894 0.004472 **
Residuals 9.4153 19
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Part 6 · Variance Explained — R²

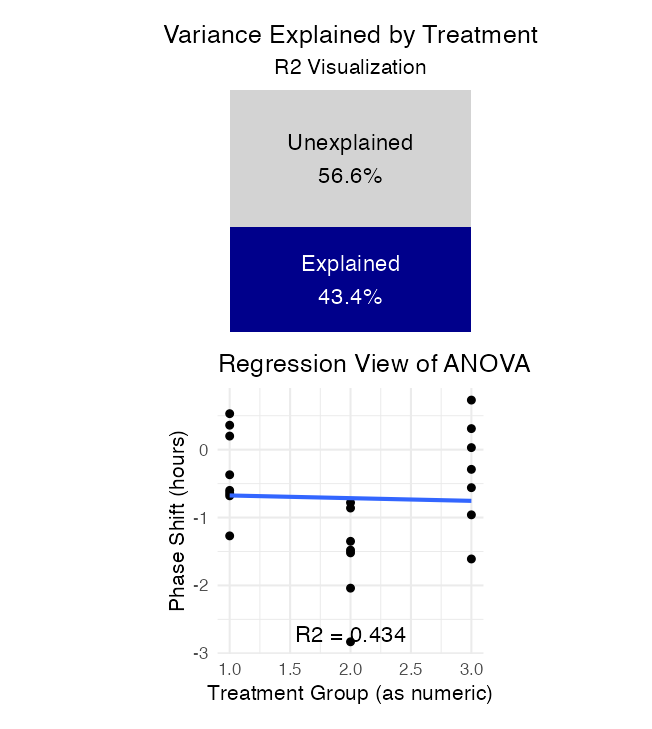

Variance Explained: R²

R² summarizes the contribution of group differences to total variation:

\[R^2 = \frac{SS_{among}}{SS_{total}}\]

This is interpreted as the “fraction of the variation in Y that is explained by groups.” For the circadian rhythm data:

\[R^2 = \frac{7.224}{16.639} = 0.43\]

43% of the total variation in phase shift is explained by differences in light treatment, with the remaining 57% unexplained.

Connection to regression: this is exactly the same calculation as R² in regression, \(R^2 = SS_{regression}/SS_{total}\).

Part 7 · Assumptions and Diagnostics

ANOVA Assumptions

ANOVA has the same assumptions as the two-sample t-test, but applied to all k groups:

• Random samples from corresponding populations
• Normality — Y values are normally distributed in each population
• Homogeneity of variance — variance is the same in all populations
• Independence — observations are independent

Checking assumptions:

• Normality: QQ plots, histogram of residuals, Shapiro-Wilk test
• Homogeneity: plot residuals vs. predicted values or x-values
• Independence: examine the experimental design

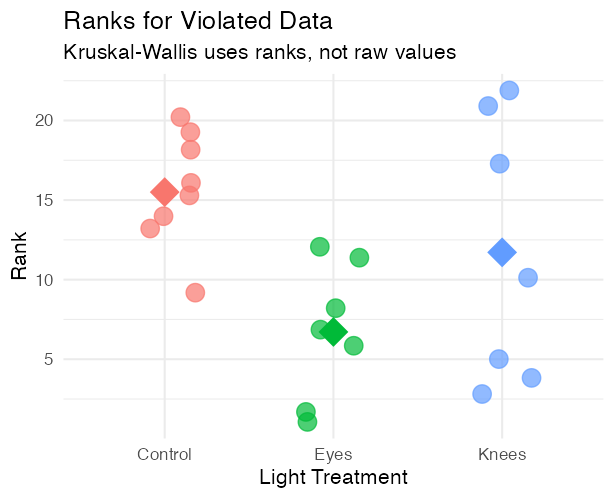

If assumptions are violated: transform Y (e.g., log, square root), use robust or non-parametric alternatives, or use generalized linear models (GLMs).

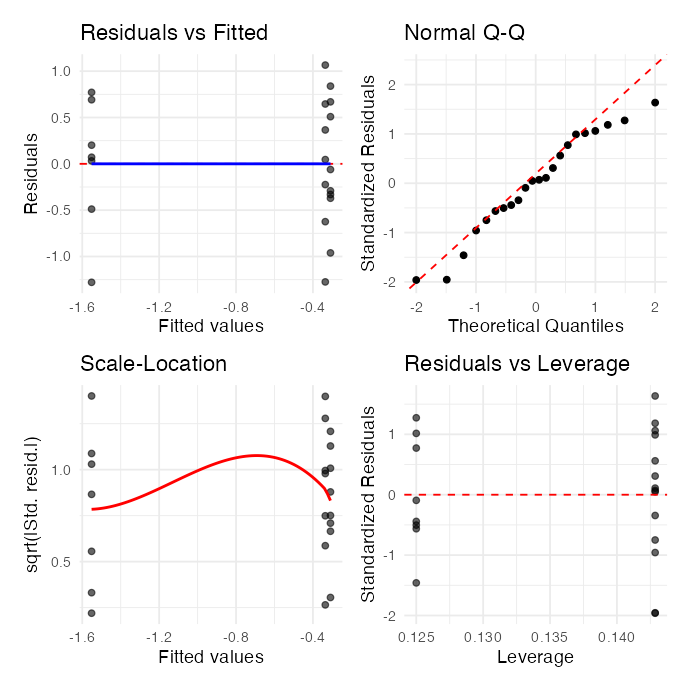

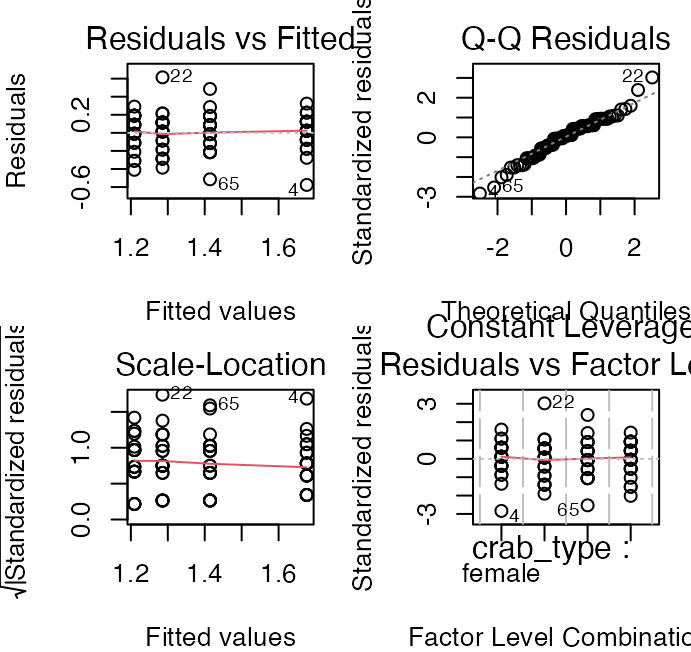

The Four Standard Diagnostic Plots

Tip

🖐 Notice

These are the same four diagnostic views R gives you automatically from plot(model) — here built by hand with ggplot2 + broom::fortify() so we can style them consistently.

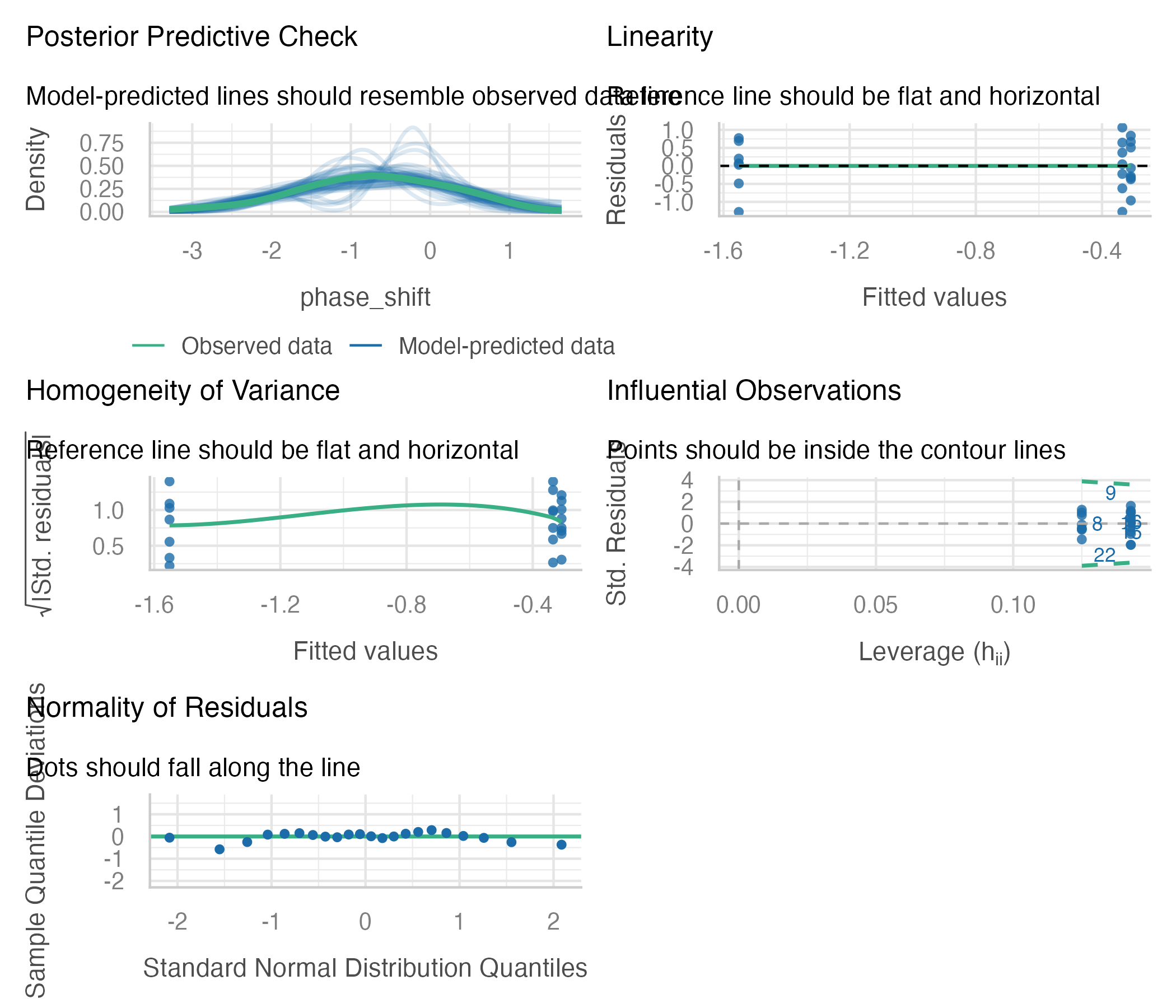

A Newer Way to Check — the performance Package

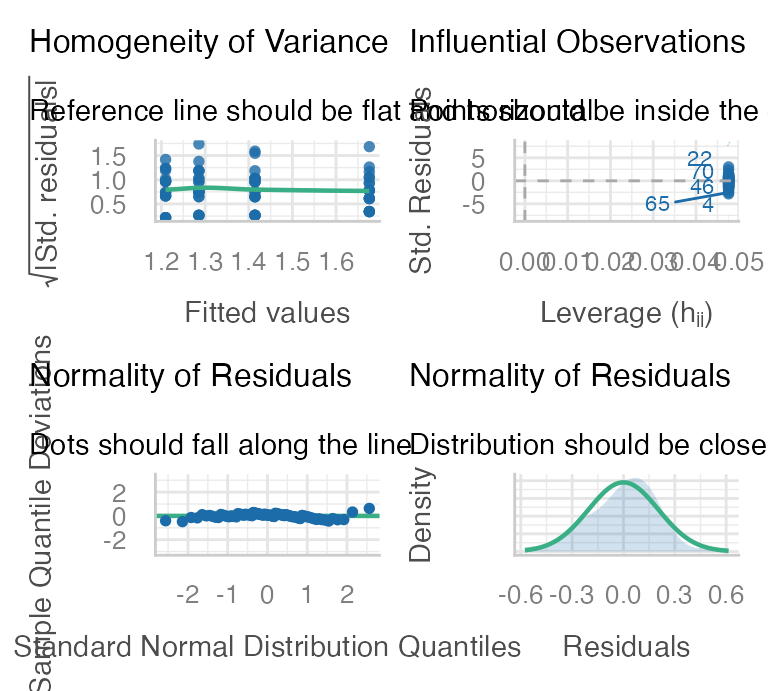

Multi-panel model diagnostic figure generated by performance::check_model(), including residual, normality, homogeneity of variance, and collinearity panels with built-in reference bands.

Note

✅ Key idea

check_model() from the performance package builds all the standard diagnostic panels — plus a few extra (e.g., collinearity) — in one call, with built-in guidance on what “good” looks like for each panel.

Levene’s Test

Levene’s test of homogeneity of variance.

• Null hypothesis: variances are homogeneous
• So you want a non-significant result here

Levene's Test for Homogeneity of Variance (center = median)
      Df F value Pr(>F)
group  2  0.1586 0.8545
      19

Shapiro-Wilk Test

Shapiro-Wilk normality test.

• Null hypothesis: the data are normally distributed
• So you want a non-significant result here

    Shapiro-Wilk normality test

data:  residuals(circ_model)
W = 0.95893, p-value = 0.468

Shared Assumptions with Regression

Note

ANOVA and regression share virtually identical assumptions, because they are both linear models:

Assumption	ANOVA	Regression
Linearity	Each group has its own mean; effects are additive (no interaction in one-way ANOVA)	Relationship between X and Y is linear
Normality	Residuals are normal	Residuals are normal
Equal variance	Variance is the same across all groups	Variance is the same across all X values
Independence	Observations are independent	Observations are independent

Part 8 · Post-Hoc Testing

ANOVA Post-Hoc Testing — Overview

When ANOVA rejects H₀, we need to determine which groups differ.

• Unplanned (post hoc) comparisons: used when no specific comparisons were planned; must adjust for multiple testing. Common methods: Tukey-Kramer, Bonferroni, Scheffé, Sidak
• Planned comparisons: have strong prior justification, use pooled variance from all groups, have higher precision than separate t-tests
• Example: Tukey’s HSD to compare all pairs of treatments in the circadian rhythm data

 contrast        estimate    SE df t.ratio p.value
 Control - Eyes     1.243 0.364 19   3.411  0.0079
 Control - Knees    0.027 0.364 19   0.074  0.9970
 Eyes - Knees      -1.216 0.376 19  -3.231  0.0117

P value adjustment: tukey method for comparing a family of 3 estimates

 treatment emmean    SE df lower.CL upper.CL .group
 Eyes      -1.551 0.266 19    -2.25   -0.855  a
 Knees     -0.336 0.266 19    -1.03    0.361   b
 Control   -0.309 0.249 19    -0.96    0.343   b

Confidence level used: 0.95
Conf-level adjustment: sidak method for 3 estimates
P value adjustment: tukey method for comparing a family of 3 estimates
significance level used: alpha = 0.05
NOTE: If two or more means share the same grouping symbol,
      then we cannot show them to be different.
      But we also did not show them to be the same.

Post-Hoc Testing — Planned Comparisons

When ANOVA rejects H₀, we need to determine which groups differ.

• Unplanned (post hoc) comparisons: used when no specific comparisons were planned; must adjust for multiple testing. Common methods: Tukey-Kramer, Bonferroni, Scheffé
• Planned comparisons: have strong prior justification, use pooled variance from all groups, have higher precision than separate t-tests
• Example: using Tukey’s HSD to compare all pairs of treatments

[1] "Control" "Eyes"    "Knees"

 contrast         estimate    SE df t.ratio p.value
 control vs eyes     1.243 0.364 19   3.411  0.0029
 control vs knees    0.027 0.364 19   0.074  0.9418

Comparison of Post-Hoc Tests

The main post-hoc tests:

• Tukey-Kramer (HSD): compares all possible pairs of group means, controls family-wise error rate, most powerful when comparing ALL pairwise combinations
• Bonferroni: adjusts α by dividing by the number of comparisons (α/k); very conservative; best for a small number of planned comparisons
• Sidak: similar to Bonferroni but slightly less conservative: 1−(1−α)^(1/k); gives slightly more power
• Dunnett’s Test: specifically for comparing treatment groups to a control; more powerful than the others for that specific job

The key tradeoff is between power (detecting real differences) and Type I error control (avoiding false positives). More conservative tests give better error control but less power.

tukey_result <- emmeans(circ_model, "treatment") |>
  pairs(adjust = "tukey")

bonferroni_result <- emmeans(circ_model, "treatment") |>
  pairs(adjust = "bonferroni")

sidak_result <- emmeans(circ_model, "treatment") |>
  pairs(adjust = "sidak")

dunnett_result <- emmeans(circ_model, "treatment") |>
  contrast(method = "trt.vs.ctrl", ref = 1, adjust = "dunnett")

all_methods <- bind_rows(
  summary(tukey_result) |>
    as_tibble() |>
    select(contrast, estimate, SE, p.value) |>
    mutate(Method = "Tukey"),

  summary(bonferroni_result) |>
    as_tibble() |>
    select(contrast, estimate, SE, p.value) |>
    mutate(Method = "Bonferroni"),

  summary(sidak_result) |>
    as_tibble() |>
    select(contrast, estimate, SE, p.value) |>
    mutate(Method = "Sidak")
)

all_methods |>
  select(contrast, Method, p.value) |>
  pivot_wider(names_from = Method, values_from = p.value) |>
  arrange(Tukey)

# A tibble: 3 × 4
  contrast          Tukey Bonferroni   Sidak
  <chr>             <dbl>      <dbl>   <dbl>
1 Control - Eyes  0.00787    0.00879 0.00877
2 Eyes - Knees    0.0117     0.0132  0.0131
3 Control - Knees 0.997      1       1.000

Post-Hoc Visualization

When ANOVA rejects H₀, we need to determine which groups differ.

• Unplanned comparisons: used when no specific comparisons were planned; must adjust for multiple testing. Common methods: Tukey-Kramer, Bonferroni, Scheffé
• Planned comparisons: have strong prior justification, use pooled variance, higher precision than separate t-tests
• Example: Tukey’s HSD to compare all pairs of treatments

Significance Groups Plot

When ANOVA rejects H₀, we need to determine which groups differ.

• Unplanned comparisons: used when no specific comparisons were planned; must adjust for multiple testing. Common methods: Tukey-Kramer, Bonferroni, Scheffé
• Planned comparisons: have strong prior justification, use pooled variance, higher precision than separate t-tests
• Example: Tukey’s HSD to compare all pairs of treatments

Part 9 · Reporting Results

Reporting ANOVA Results

Formal scientific writing example:

“The effect of light treatment on circadian rhythm phase shift was analyzed using a one-way ANOVA. There was a significant effect of treatment on phase shift (F(2, 19) = 7.29, p = 0.004, η² = 0.43). Post-hoc comparisons using Tukey’s HSD test indicated that the mean phase shift for the Eyes treatment (M = −1.55 h, SD = 0.71) was significantly different from both the Control treatment (M = −0.31 h, SD = 0.62) and the Knees treatment (M = −0.34 h, SD = 0.79). However, the Control and Knees treatments did not significantly differ from each other. These results suggest that light exposure to the eyes, but not to the knees, impacts circadian rhythm phase shifts.”

Note

Key ANOVA principles

1. Compares means across multiple groups simultaneously
2. Both ANOVA and regression are special cases of the General Linear Model — ANOVA with categorical predictors = regression with dummy variables
3. Both partition variance into explained and unexplained components: \(SS_{Total} = SS_{Between} + SS_{Within}\)
4. Fixed effects target specific groups of interest (most common); random effects sample from a larger population

Part 10 · Non-Parametric Alternatives

Overview of Non-Parametric Tests

Common non-parametric alternatives to ANOVA — these make fewer assumptions about the data distribution.

1. Kruskal-Wallis test — non-parametric alternative to one-way ANOVA; tests for differences in median ranks; works with ordinal or continuous data. Assumptions: independent observations, similar distribution shapes
2. Mood’s median test (not covered here) — tests whether medians differ across groups; more robust but less powerful than Kruskal-Wallis; good for highly skewed data

When to use non-parametric tests:

• Small sample sizes
• Heavily skewed data
• Legitimate outliers present
• Very unequal variances
• Ordinal (ranked) data
• Assumption checks clearly fail

Trade-offs: fewer assumptions and more robust to outliers, but less statistical power and testing medians/ranks rather than means.

The Kruskal-Wallis H Test

The most common non-parametric alternative to one-way ANOVA.

What it does: ranks all observations from smallest to largest, compares the sum of ranks between groups, tests if groups come from the same distribution.

Hypotheses: H₀ — all groups have the same distribution (same median); H₁ — at least one group differs.

Test statistic:

\[H = \frac{12}{N(N+1)} \sum_{i=1}^{k} n_i (\bar{R}_i - \bar{R})^2 - 3(N+1)\]

Where N = total sample size, k = number of groups, \(\bar{R}_i\) = mean rank for group i, \(\bar{R}\) = overall mean rank = (N+1)/2, nᵢ = sample size for group i. Distribution approximated by χ² with (k−1) df.

Assumptions of Kruskal-Wallis — much more relaxed than parametric ANOVA:

• Independence — same as parametric ANOVA, still critical
• Similar distribution shapes — groups should have similar spread/variance; if violated, interpret as differences in distributions generally, not just medians
• Ordinal or continuous data

What’s NOT assumed: normal distribution, equal variances (though it helps interpretation), a specific distribution shape.

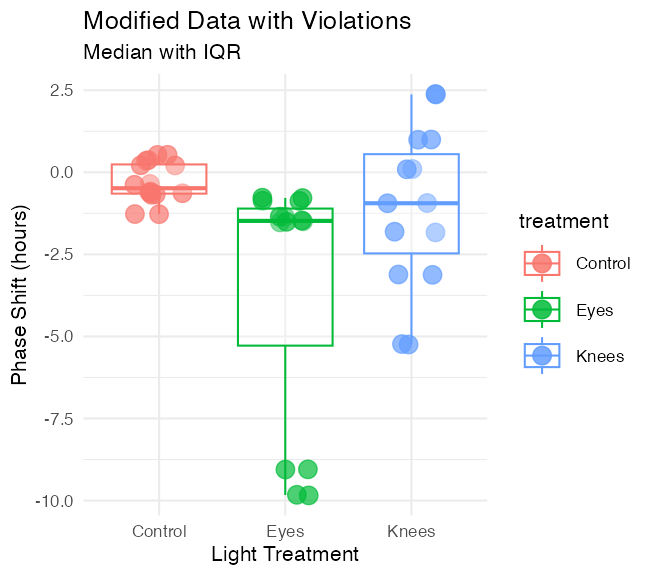

Demonstrating Assumption Violations

Creating a modified dataset with clear violations:

set.seed(42)
violated_circ_df <- circ_data %>%
  mutate(
    phase_shift_violated = case_when(
      treatment == "Control" ~ phase_shift,
      treatment == "Knees" ~ phase_shift * 3.25,
      treatment == "Eyes" ~ {
        n <- length(phase_shift)
        c(phase_shift[1:(n-2)], phase_shift[(n-1):n] - 7)
      }
    )
  )

violated_model <- lm(phase_shift_violated ~ treatment,
                     data = violated_circ_df)

What we changed: increased variance in the Knees group, added extreme outliers to the Eyes group, creating unequal variances and non-normality.

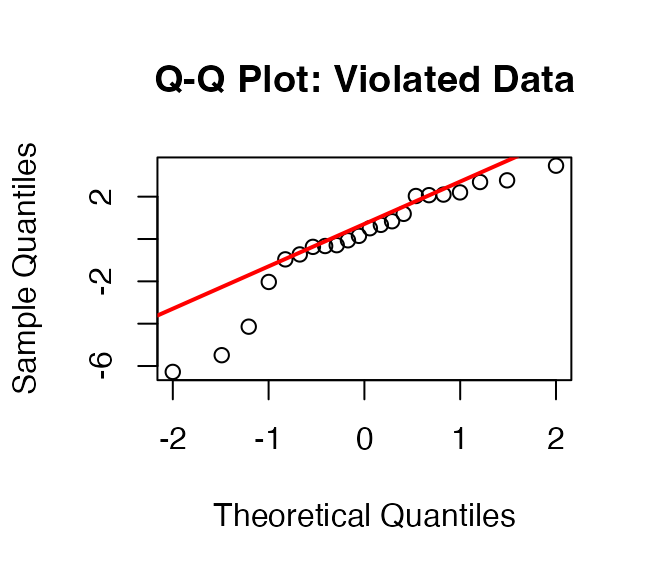

Checking Violated-Data Assumptions — Normality

Clear violation: p < 0.05, points deviate from the line.

    Shapiro-Wilk normality test

data:  resid(violated_model)
W = 0.89473, p-value = 0.02335

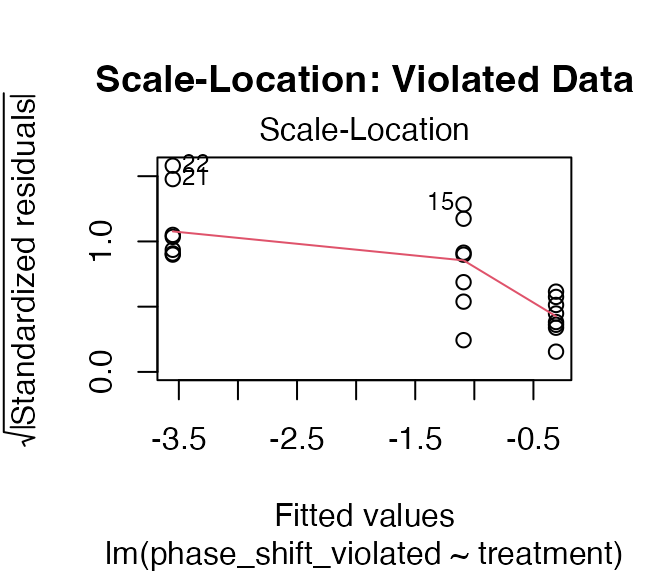

Checking Violated-Data Assumptions — Variance

Clear violation: p < 0.05, unequal variances evident.

Levene's Test for Homogeneity of Variance (center = median)
      Df F value Pr(>F)
group  2  1.5618 0.2355
      19

Performing the Kruskal-Wallis Test — Original Data

Even though assumptions are met, let’s compare results:

kruskal_original_result <- kruskal.test(
  phase_shift ~ treatment,
  data = circ_data)
kruskal_original_result

    Kruskal-Wallis rank sum test

data:  phase_shift by treatment
Kruskal-Wallis chi-squared = 9.4231, df = 2, p-value = 0.008991

Interpretation: H = test statistic (χ² approximation); df = k − 1 = 2; p = 0.0135 (significant at α = 0.05); conclusion: at least one group differs.

Compare to parametric ANOVA:

Analysis of Variance Table

Response: phase_shift
          Df Sum Sq Mean Sq F value   Pr(>F)
treatment  2 7.2245  3.6122  7.2894 0.004472 **
Residuals 19 9.4153  0.4955
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

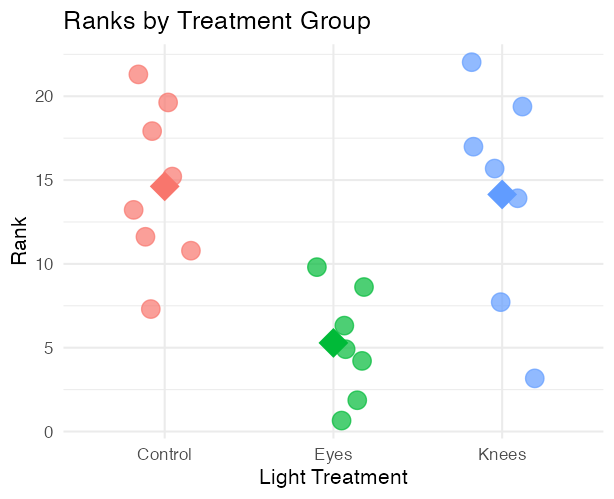

How Kruskal-Wallis works:

# A tibble: 3 × 4
  treatment mean_rank sum_rank     n
  <fct>         <dbl>    <dbl> <int>
1 Control       14.6       117     8
2 Eyes           5.29       37     7
3 Knees         14.1        99     7

Kruskal-Wallis on Violated Data

Non-parametric test handles violations:

kruskal_violated_result <- kruskal.test(
  phase_shift_violated ~ treatment,
  data = violated_circ_df)
kruskal_violated_result

    Kruskal-Wallis rank sum test

data:  phase_shift_violated by treatment
Kruskal-Wallis chi-squared = 6.8453, df = 2, p-value = 0.03263

Analysis of Variance Table

Response: phase_shift_violated
          Df  Sum Sq Mean Sq F value Pr(>F)
treatment  2  41.806 20.9029  2.8361 0.0836 .
Residuals 19 140.037  7.3704
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Key observations: both tests still detect differences; Kruskal-Wallis is more robust to violations; the parametric test may give misleading results when assumptions are violated; the non-parametric test maintains validity.

Why Kruskal-Wallis is robust: uses ranks instead of raw values, outliers affect ranks minimally, unequal variances are less problematic, no distribution assumptions are needed.

Post-Hoc Tests for Kruskal-Wallis — Pairwise Wilcoxon

Just like ANOVA, we need post-hoc tests to identify which groups differ:

    Pairwise comparisons using Wilcoxon rank sum exact test

data:  nonparam_circ_df$phase_shift and nonparam_circ_df$treatment

      Control Eyes
Eyes  0.0037  -
Knees 1.0000  0.0787

P value adjustment method: bonferroni

Interpretation of p-values: Control vs Eyes: p = 0.024 (significant); Control vs Knees: p = 1.000 (not significant); Eyes vs Knees: p = 0.078 (not significant).

Common adjustment methods: "bonferroni" (most conservative), "holm" (less conservative), "BH" (Benjamini-Hochberg, controls false discovery rate), "none" (not recommended).

pairwise_violated_result <- pairwise.wilcox.test(
  x = violated_circ_df$phase_shift_violated,
  g = violated_circ_df$treatment,
  p.adjust.method = "bonferroni"
)
pairwise_violated_result

    Pairwise comparisons using Wilcoxon rank sum exact test

data:  violated_circ_df$phase_shift_violated and violated_circ_df$treatment

      Control Eyes
Eyes  0.0037  -
Knees 1.0000  1.0000

P value adjustment method: bonferroni

Original Data Pairwise p-values:
   Control vs Eyes:  0.024 *
   Control vs Knees: 1.000
   Eyes vs Knees:    0.078

Violated Data Pairwise p-values:
   Control vs Eyes:  0.015 *
   Control vs Knees: 1.000
   Eyes vs Knees:    0.015 *

Dunn’s Test — an Alternative Post-Hoc

Dunn’s test is specifically designed for Kruskal-Wallis post-hoc comparisons:

dunn_original_result <- dunnTest(
  phase_shift ~ treatment,
  data = circ_data,
  method = "bonferroni")
dunn_original_result

       Comparison          Z     P.unadj      P.adj
1  Control - Eyes  2.7789287 0.005453849 0.01636155
2 Control - Knees  0.1434629 0.885924641 1.00000000
3    Eyes - Knees -2.5517789 0.010717452 0.03215236

Advantages: designed specifically for Kruskal-Wallis, provides Z-statistics in addition to p-values, multiple adjustment methods available, more appropriate than multiple Wilcoxon tests. A Z-statistic tells you how many standard deviations a difference is from the expected value (usually zero, “no difference”).

dunn_violated_result <- dunnTest(
  phase_shift_violated ~ treatment,
  data = violated_circ_df,
  method = "bonferroni"
)
dunn_violated_result

       Comparison         Z     P.unadj      P.adj
1  Control - Eyes  2.614212 0.008943349 0.02683005
2 Control - Knees  1.126449 0.259975463 0.77992639
3    Eyes - Knees -1.440520 0.149720243 0.44916073

Interpreting Z-statistics: large |Z| values indicate bigger differences; Z > 1.96 is approximately equivalent to p < 0.05; the sign indicates the direction of the difference.

Which Post-Hoc Test Should You Use?

• Use Dunn’s test because it’s the proper follow-up to Kruskal-Wallis, maintains consistency with the overall K-W ranking, is more statistically appropriate for the omnibus test you ran, and is standard in published research
• Wilcoxon is fine for simple two-group comparisons, but once you’ve run Kruskal-Wallis (a 3+ group test), Dunn’s is the standard choice

Tip

🖐 Notice

Kruskal-Wallis ranks ALL your data once. Dunn’s test uses those same ranks. Pairwise Wilcoxon throws away that information and re-ranks separately for each pair.

Reporting Non-Parametric Results

Essential elements to include: test name and purpose, sample sizes per group, medians and IQRs (not means and SDs!), test statistic (H) and degrees of freedom, p-value, effect size, post-hoc test results, conclusion.

Example write-up: “A Kruskal-Wallis test was conducted to compare the effect of light treatment on circadian rhythm phase shift across three groups: Control (n = 8), Knees (n = 7), and Eyes (n = 7). Median phase shifts were −0.48 hours (IQR = 0.84) for Control, −0.29 hours (IQR = 1.04) for Knees, and −1.48 hours (IQR = 0.66) for Eyes. The test revealed a statistically significant difference in phase shift between the groups, H(2) = 8.66, p = 0.013, ε² = 0.37. Post-hoc pairwise comparisons using Dunn’s test with Bonferroni correction indicated that the Eyes treatment differed significantly from Control (p = 0.024), but no other pairwise differences were significant.”

In-text citation format:

The Kruskal-Wallis test revealed significant differences between treatment groups, H(2) = 8.66, p = .013.

Warning

⚠️ Common mistakes to avoid

• Reporting means instead of medians, using SD instead of IQR
• Not mentioning it’s a non-parametric test
• Not justifying why a non-parametric test was used

Reporting — the Table Format

Table 1. Descriptive Statistics for Phase Shift by Treatment



Note. IQR = interquartile range.
 Kruskal-Wallis H(2) = 8.66, p = .013

# A tibble: 3 × 6
  treatment     n Median   IQR   Min   Max
  <fct>     <int>  <dbl> <dbl> <dbl> <dbl>
1 Control       8 -0.485 0.89  -1.27  0.53
2 Eyes          7 -1.48  0.675 -2.83 -0.78
3 Knees         7 -0.29  0.93  -1.61  0.73
