Lecture 07 — From Script to Report

One Quarto file: read the data, plot it, describe it, test it — Word, PDF, and slides

quarto
reproducibility
markdown

Why we write analyses as Quarto documents instead of loose scripts: YAML, Markdown, and code chunks with a chunk-option reference, then the whole leaf analysis start to finish — box plot, mean ± SE, histogram, summary statistics table, Welch’s t-test — rendered to Word, PDF, and RevealJS slides from one file.

Author

Bill Perry

Published

October 1, 2026

Where we left off (Lectures 03–06)

  • Read the leaf data with read_excel() + clean_names()
  • Plotted it — box plots, mean ± SE with stat_summary(), histograms
  • Described it — group_by() + summary_stats(): n, mean, SD, SE, 95% CI
  • Everything so far lives in a .R script
Note

✅ Key idea

You already know every piece of a real analysis. Today we put all of it — plus a t-test — into one document a human can read.

Goals for today

  • Understand why a script alone is not enough
  • Know where a Quarto file lives in your project
  • Learn the three ingredients:
    • YAML — the recipe at the top (one switch hides all the code)
    • Markdown — formatted text, no clicking
    • Code chunks — R that runs, plus the chunk options that control it
  • Take the leaf data start to finish: plots → summary table → Welch’s t-test
  • Render one file to Word, PDF, and RevealJS slides
Tip

🖐 You will hand in

leaf_report.qmd, leaf_report.docx, and leaf_report.pdf.

Tools today:

  • Positron + Quarto (built in)
  • broom — turns test output into a table (installed with tidyverse)

Get the starter file:

References:

How to Use These Slides — Predict · Type · Render

This lecture runs in four short chunks. After each chunk you switch to the activity and fill in your own report.

For every snippet, do three things:

  1. Predict — before you Render, say what the document will show
  2. Type it out by hand — do not copy-paste
  3. Render and compare to your prediction
Note

✅ Why bother? (the evidence)

  • Predicting first forces you to retrieve how Markdown and chunks behave. The surprise when you’re wrong is what makes it stick.
  • Typing by hand builds muscle memory for YAML indentation and chunk syntax — exactly where beginners slip.
  • Chunk → immediate practice keeps each new idea in working memory long enough to form a lasting schema.

🧩 Chunk 1 of 4 · Why Quarto, and Where the File Lives

We will cover: the pain of script-plus-copy-paste, literate programming, reproducibility, and where to save a .qmd so your paths just work.

Tip

🖐 After this chunk: Activity Part 1 (save the starter file at the top of your project and Render it).

Part 1 · The problem with scripts

What happens after the analysis?

Your .R script is great for running code. But when the lab report is due you have to:

  • Run the script
  • Copy each number into Word by hand
  • Export every plot, then drag it in
  • Re-do all of it when the data changes
Warning

⚠️ Watch out!

Every hand-copied number is a chance for a typo. Change one data point and the whole report is out of date.

Note

📊 Coming from Excel?

This is the same pain as pasting a chart into Word, then editing the spreadsheet and forgetting to update the chart.

The idea: keep code and writing together

Literate programming — write the story and the code in the same file.

  • Your explanation sits next to the code that made it
  • Tables and plots are computed, never copied
  • Press Render → a finished document appears
one .qmd file  →  Render  →  Word  /  PDF  /  slides

Change the data, Render again, and every table and figure rebuilds itself. That is what scientists mean by reproducible.

Note

📖 New word

Quarto = the tool that turns one plain-text .qmd file into a polished document.

Note

✅ Key idea

A script does the analysis. A Quarto document does the analysis and explains it — and rebuilds itself on demand.

Where does the .qmd go? — the top of your project

leaf_project/
├── data/
│   └── 2026_09_03_data_sci_leaf_area.xlsx
├── figures/
├── scripts/
├── themes/
│   ├── r_themes_for_3_sizes.R
│   └── summary_stats_function.R
└── leaf_report.qmd      <- HERE

Quarto runs the code from the folder the .qmd is saved in. Save it at the top of the project and these paths work exactly as they do in your scripts:

read_excel("data/2026_09_03_data_sci_leaf_area.xlsx")
source("themes/summary_stats_function.R")
Note

✅ Key idea

.qmd at the top + short paths into subfolders = no here package, no ../. Same paths in the Console, in your scripts, and in the report.

Warning

⚠️ Watch out!

Save it inside documents/ and "data/..." breaks — Quarto would look for documents/data/. You would need "../data/..." everywhere. Don’t.

🛑 Pause — Do Activity Part 1 Now

🛑 Do Activity Part 1 now

Download leaf_report_skeleton.qmd, save it at the top of your project as leaf_report.qmd, and press Render before you change anything.

🧩 Chunk 2 of 4 · Anatomy of a .qmd

We will cover: YAML (and the one line that hides all the code), Markdown, code chunks, and the chunk options you will use all term.

Tip

🖐 After this chunk: Activity Parts 2–4 (YAML, Markdown, chunk options).

Three parts, top to bottom

Every Quarto document has the same three ingredients:

1. YAML front matter  ← the recipe (title, outputs, defaults)
2. Markdown text      ← your writing, formatted
3. Code chunks        ← R that runs and shows results

You already read these every day — this whole lecture is a .qmd file.

Note

📖 New word

.qmd = a Quarto markdown file. Plain text you can open anywhere.

Ingredient 1 · YAML — the recipe

Note

🔮 Predict first: The execute: block below says echo: true. What changes in the whole document if you switch it to false?

---
title: "Leaf Mass on the Sunny and Shady Sides of a Tree"
author: "Your Name"
date: today

format:            # one file -> three documents
  docx:
    toc: true
    number-sections: true
  pdf:
    toc: true
    number-sections: true
    fig-pos: "H"
  revealjs:
    scrollable: true
    smaller: true

execute:           # defaults for EVERY chunk
  echo: true       # false = hide ALL the code at once
  warning: false
  message: false
---
  • format: — which documents to build
  • execute: — settings for every chunk; one line turns all the code on or off
Tip

One switch

Write with echo: true so you can see your code. Flip to echo: false for the version you hand in.

Warning

⚠️ Watch out!

YAML is space-sensitive: two spaces, never tabs.

Ingredient 2 · Markdown text

Note

🔮 Predict first: Before it renders, sketch what this becomes — which line is a big heading, which are bullets, what turns bold?

# Introduction

Leaves on the **shady** side of a tree may grow
larger to catch more of the limited light.

- **Null hypothesis:** mean mass is the same on both sides
- **Alternate hypothesis:** mean mass differs

<!-- a comment: never shows up in the output -->
  • # heading, ## smaller heading
  • **bold**, *italic*, - bullets
  • <!-- --> a note to yourself — the skeleton is full of them
Note

📊 Coming from Word?

**bold** is just the keyboard version of clicking the B button. Same result, no mouse.

Note

🎞 Bonus

In the slide version, every # becomes a section slide and every ## becomes a slide.

Ingredient 3 · Code chunks

A code chunk is fenced R that actually runs when you render:

```{r}
#| label: load-data
# read the leaf data from the data/ folder ----
leaf_df <-
  read_excel("data/2026_09_03_data_sci_leaf_area.xlsx") %>%
  clean_names()
```
  • Opening fence ```{r} — closing fence ```
  • Lines starting #| are chunk options
  • Then a # comment saying what it does — same rule as your scripts
Tip

Insert a chunk: Ctrl/Cmd + Alt + I

Warning

⚠️ Watch out!

Every label must be unique. Two chunks named plot stop the Render:

Duplicate chunk label 'plot'

The error names the label — go straight to it.

Chunk options — the reference card

The execute: block in the YAML sets the default for every chunk; a chunk’s own #| line overrides it for that one chunk.
Option What it does Example
label Names the chunk. fig- / tbl- at the front numbers it as a Figure / Table #| label: fig-boxplot
echo Show (true) or hide (false) the code #| echo: false
eval Run the code (true) or only show it (false) #| eval: false
include false runs the code but hides both code and output #| include: false
output false hides the results but keeps the code #| output: false
warning / message Show or hide warnings / package messages #| message: false
fig-width / fig-height Figure size in inches #| fig-width: 5
fig-cap Figure caption #| fig-cap: "Leaf mass by side"
tbl-cap Table caption #| tbl-cap: "Summary statistics"
tbl-colwidths Column widths in percent — tidy Word tables #| tbl-colwidths: [30, 70]

🛑 Pause — Do Activity Parts 2–4 Now

🛑 Do Activity Parts 2–4 now

Put your name in the YAML and try the echo switch; write the Introduction and Methods in Markdown; then use the reference card to hide the setup chunk. Predict each Render before you press it.

🧩 Chunk 3 of 4 · Plot It, Then Describe It

We will cover: the three plots you already know — box plot, mean ± SE, histogram — as named chunks with numbered captions, then a summary statistics table that looks right in Word.

Tip

🖐 Your skeleton already has a plain, working version of every chunk below. You add the finishing touches — colors, labels, theme_regular(), table formatting — in Activity Parts 5–6.

Start at the top: load the data

```{r}
#| label: load-data
# read the leaf data from the data/ folder ----
leaf_df <-
  read_excel("data/2026_09_03_data_sci_leaf_area.xlsx") %>%
  clean_names()
```

The setup chunk above it (already in your skeleton) loads readxl, tidyverse, janitor, broom, and source()s the theme file and summary_stats().

Warning

⚠️ Watch out!

Quarto runs the file top to bottom in a fresh R session — not whatever is sitting in your Console. Libraries and data must load in a chunk above anything that uses them.

Plot 1 · Box plot with the raw points

```{r}
#| label: fig-boxplot
#| output-location: column
#| fig-cap: "Leaf mass by side; each point is one leaf."
#| fig-width: 5
#| fig-height: 4
# box plot with raw points on top ----
leaf_df %>%
  ggplot(aes(x = shade, y = mass_g, fill = shade)) +
  geom_boxplot(alpha = 0.6, outlier.shape = NA) +
  geom_jitter(width = 0.15, alpha = 0.6)
```

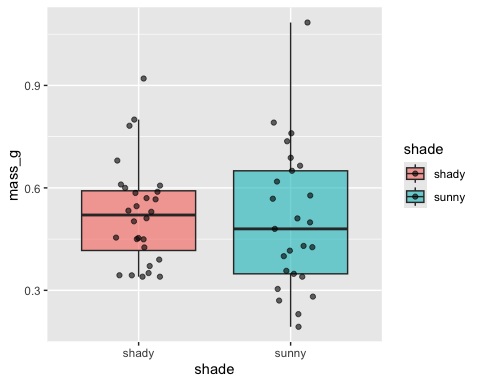

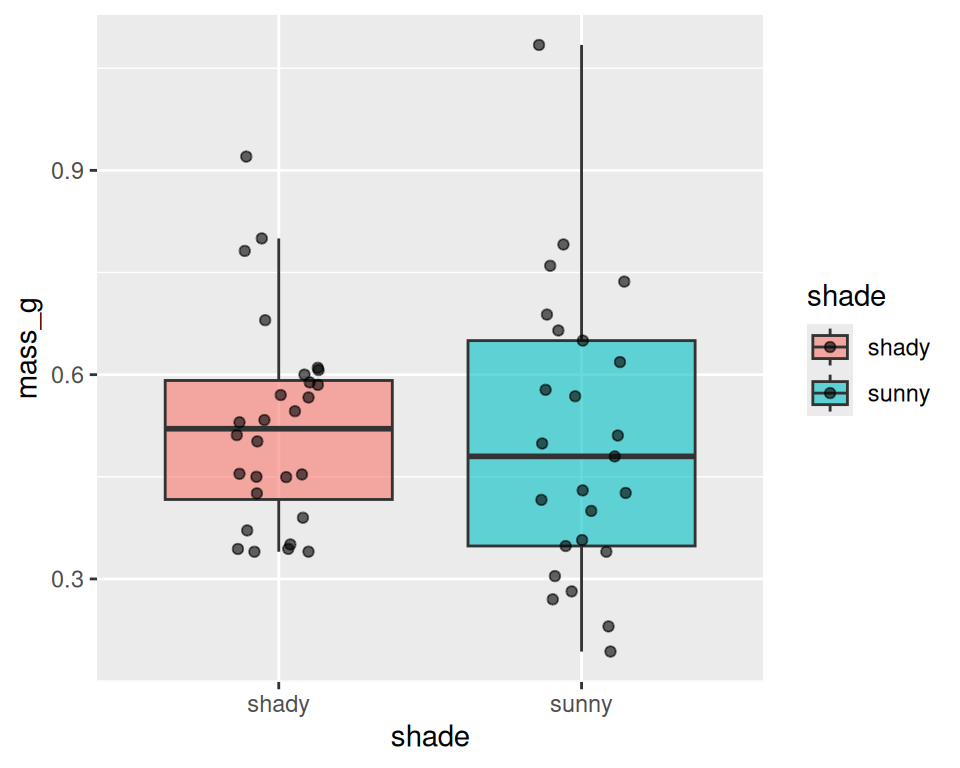

Figure 1: Leaf mass by side; each point is one leaf.
  • 🔮 Predict: the label starts with fig- — what does the caption start with?
  • ✏️ You add: your two colors, labs(), theme_regular(), no legend

Plot 2 · Mean ± SE

```{r}
#| label: fig-mean-se
#| output-location: column
#| fig-cap: "Mean leaf mass (± 1 SE) by side."
#| fig-width: 5
#| fig-height: 4
# mean +/- standard error plot ----
leaf_df %>%
  ggplot(aes(x = shade, y = mass_g, color = shade)) +
  geom_jitter(width = 0.15, alpha = 0.35, size = 2) +
  stat_summary(fun = mean, geom = "point", size = 4) +
  stat_summary(fun.data = mean_se, geom = "errorbar",
               width = 0.15, linewidth = 0.9)
```

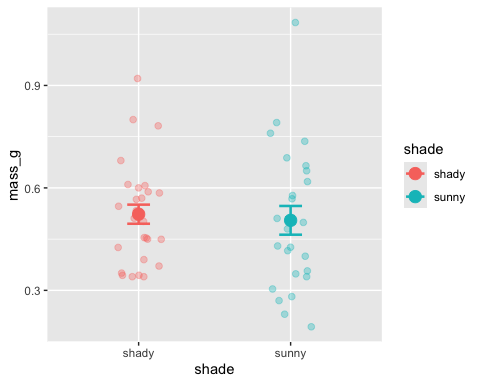

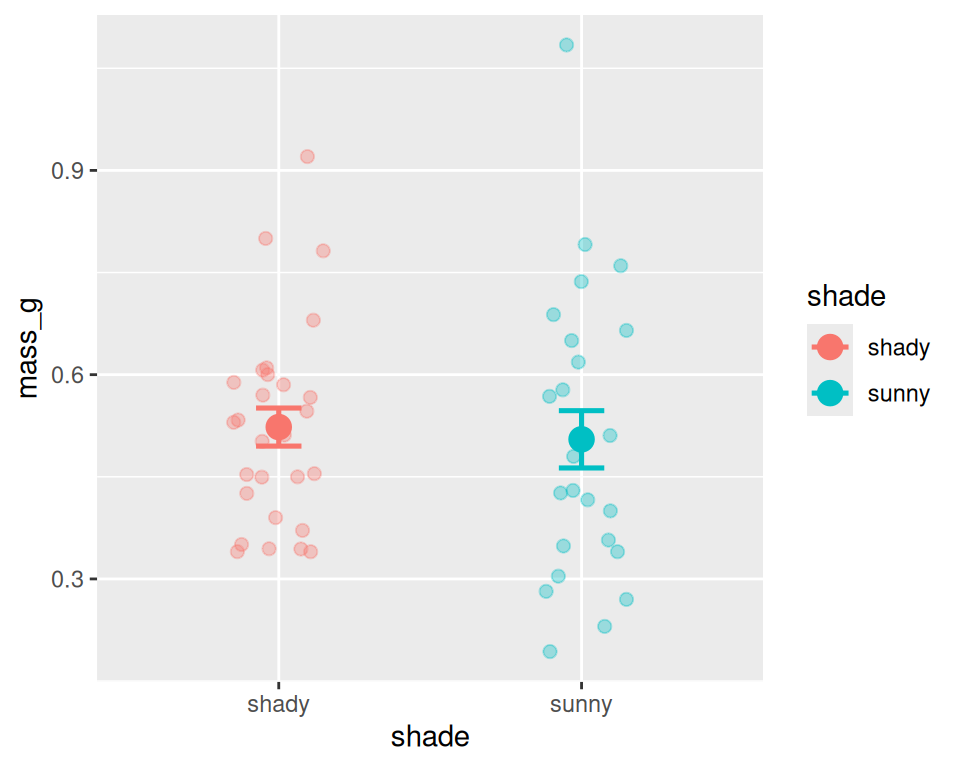

Figure 2: Mean leaf mass (± 1 SE) by side.
  • 🔮 Predict: the error bars overlap almost completely — what will the t-test say?
  • ✏️ You add: the same four finishing lines — but this plot maps color, not fill

Plot 3 · Histogram — the shape of each group

```{r}
#| label: fig-histogram
#| output-location: column
#| fig-cap: "Distribution of leaf mass on each side."
#| fig-width: 6
#| fig-height: 3.5
# one histogram per side ----
leaf_df %>%
  ggplot(aes(x = mass_g, fill = shade)) +
  geom_histogram(binwidth = 0.05, color = "white") +
  facet_wrap(~shade)
```

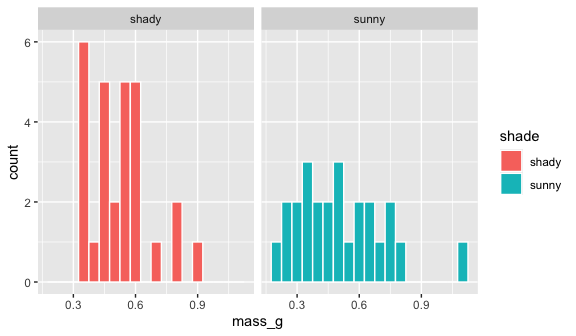

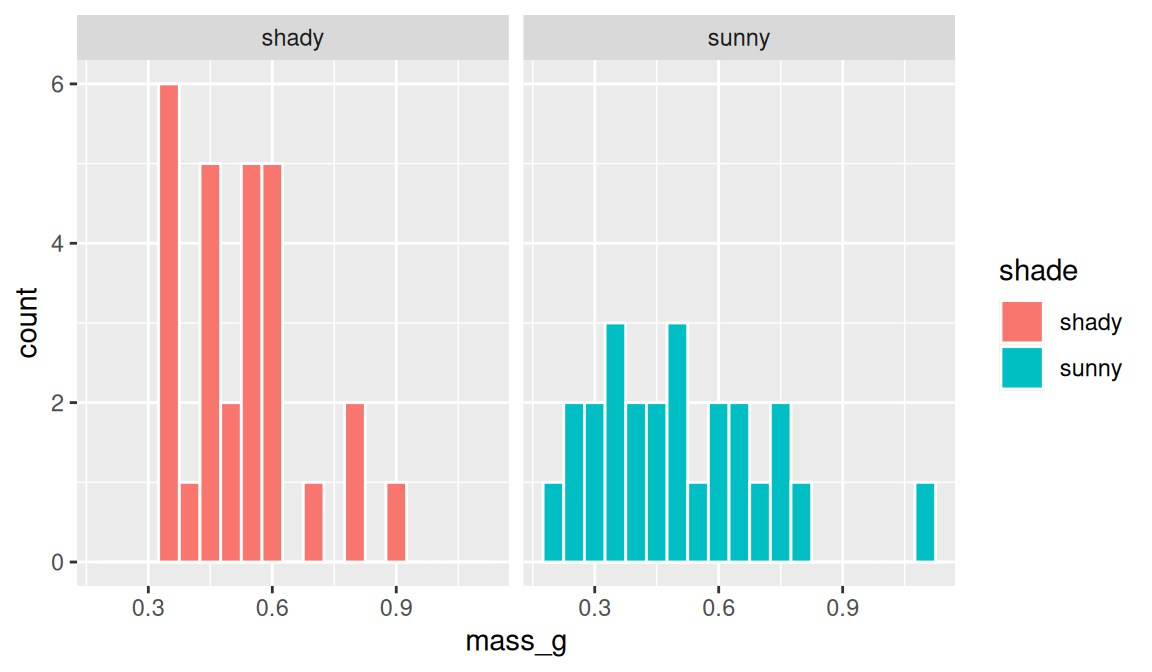

Figure 3: Distribution of leaf mass on each side.
  • Wider and shorter (6 × 3.5) because it has two panels
  • The box plot hides the shape; the histogram shows it
  • ✏️ You add: colors, labs(), theme_regular(), no legend

Describe it · a summary statistics table

```{r}
#| label: tbl-summary
#| tbl-cap: "Summary statistics for leaf mass (g) by side."
#| tbl-colwidths: [12, 7, 12, 15, 12, 12, 15, 15]
# summary statistics by side, printed as a table ----
mass_stats_df <- leaf_df %>%
  group_by(shade) %>%
  summary_stats(mass_g)

mass_stats_df %>%
  knitr::kable(
    digits = 3,
    col.names = c("Side", "n", "Mean", "Variance",
                  "SD", "SE", "CI low", "CI high"))
```
Table 1: Summary statistics for leaf mass (g) by side.
Side n Mean Variance SD SE CI low CI high
shady 28 0.523 0.022 0.148 0.028 0.466 0.580
sunny 25 0.505 0.044 0.210 0.042 0.418 0.592
  • summary_stats() — same helper as Activity 06
  • knitr::kable() — data frame → real table
  • digits = 3 — rounds the whole table
  • col.names = — readable headers, one per column
  • tbl-colwidths: — eight columns, eight percents

In your text write @tbl-summary and Quarto prints “Table 1” for you.

Why tbl-colwidths? Tables in Word

Without widths, Word guesses — and it often guesses badly: a fat first column and the last column squashed until the numbers wrap.

#| tbl-colwidths: [12, 7, 12, 15, 12, 12, 15, 15]
  • One number per column, in order
  • They are percents of the page width — aim for a total of 100
  • Give short columns (like n) less, headers like Variance more
Note

✅ Key idea

kable() makes the table; tbl-colwidths makes it line up in Word and PDF. Same numbers, readable layout.

🛑 Pause — Do Activity Parts 5–6 Now

🛑 Do Activity Parts 5–6 now

Render the plain plots and table first, then finish them: colors, axis labels, theme_regular(), no legend, and digits + col.names in kable(). Render after each one.

🧩 Chunk 4 of 4 · Test It, Then Render Everything

We will cover: a Welch’s two-sample t-test (you met the t-test in intro bio), a clean results table, then hiding the code and rendering Word, PDF, and slides.

Tip

🖐 After this chunk: Activity Parts 7–9 (t-test, render all three and hand in, then play).

The Welch’s two-sample t-test

Question: is the difference between the two means bigger than we’d expect by chance?

```{r}
#| label: ttest
# Welch's t-test (does NOT assume equal variances) ----
leaf_ttest <- t.test(mass_g ~ shade, data = leaf_df,
                     var.equal = FALSE)
leaf_ttest
```

    Welch Two Sample t-test

data:  mass_g by shade
t = 0.35579, df = 42.527, p-value = 0.7238
alternative hypothesis: true difference in means between group shady and group sunny is not equal to 0
95 percent confidence interval:
 -0.08392774  0.11987117
sample estimates:
mean in group shady mean in group sunny
          0.5230357           0.5050640
  • mass_g ~ shade — “mass by shade”: number on the left, two groups on the right
  • var.equal = FALSE — Welch’s version: does not assume the two sides have the same variance
  • Look for t, df, and p-value in the printout
Note

📖 Why Welch’s?

It is safe whether or not the variances match, so it is R’s default and a sensible first choice. Next lecture takes it apart properly.

The same result as a table

```{r}
#| label: tbl-ttest
#| tbl-cap: "Welch's t-test of leaf mass by side of the tree."
#| tbl-colwidths: [20, 20, 15, 15, 15, 15]
# the same result as a clean table ----
leaf_ttest %>%
  tidy() %>%
  select(estimate1, estimate2, statistic, parameter,
         p.value, conf.low) %>%
  knitr::kable(
    digits = 3,
    col.names = c("Mean shady", "Mean sunny", "t",
                  "df", "p-value", "CI low"))
```
Table 2: Welch’s t-test of leaf mass by side of the tree.
Mean shady Mean sunny t df p-value CI low
0.523 0.505 0.356 42.527 0.724 -0.084
  • tidy() (from broom) turns the printout into a data frame
  • then it is just select() + kable() — tools you already have
Note

✅ Reading it

p is well above 0.05, so we fail to reject the null: these data show no difference in mean leaf mass between sides — just what the overlapping error bars predicted. That is a real result; report it honestly.

Hide the code — one line

For the version you hand in, flip the switch in the YAML:

execute:
  echo: false      # hide ALL the code
  warning: false
  message: false

…and hide the raw t-test printout — the table already has those numbers. The chunk still runs, so leaf_ttest still exists:

```{r}
#| label: ttest
#| output: false
leaf_ttest <- t.test(mass_g ~ shade, data = leaf_df,
                     var.equal = FALSE)
leaf_ttest
```
Note

✅ Key idea

execute: in the YAML = the default for every chunk. A chunk’s own #| line = the exception for that one chunk.

One file → Word, PDF, and slides

The Render button previews one format. To build everything listed under format:, use the Terminal tab (not the Console):

quarto render leaf_report.qmd
File What it is
leaf_report.docx Word report — hand in
leaf_report.pdf PDF report — hand in
leaf_report.html RevealJS slide show — press F for full screen
Warning

⚠️ PDF needs LaTeX — once per computer

quarto install tinytex
Note

🎞 RevealJS

The same report becomes a web-based slide show: each # is a section slide, each ## a slide. These lecture slides are made exactly this way.

Making things fit on a slide (RevealJS)

These work in any Quarto presentation — they only change the slides, never the Word or PDF.

Control Where it goes What it does
output-location: column chunk #| line code on the left, result on the right
output-location: slide chunk #| line result gets its own slide after the code
output-location: fragment chunk #| line result appears on the next click
fig-width / fig-height chunk #| line a shorter figure fits under more text
echo: false chunk or execute: hide the code — just show the result
smaller: true under revealjs: smaller text on every slide
scrollable: true under revealjs: a long slide scrolls instead of being cut off
## Title {.smaller} on one heading smaller text on that slide only
:::: columns in the Markdown put any two things side by side
Tip

Put output-location: column under revealjs: in the YAML and every chunk in your slides gets code-left, plot-right.

🛑 Pause — Do Activity Parts 7–8 Now

🛑 Do Activity Parts 7–8 now

Read the Welch’s t-test, finish its table, write a short Discussion, set echo: false, then quarto render leaf_report.qmd in the Terminal. Hand in the .qmd, .docx, and .pdf — then play (Activity Part 9).

Wrap-up · What you can now do

  • Explain why a Quarto report beats a script plus copy-paste
  • Save a .qmd at the top of the project so data/... paths just work
  • Use the YAML to pick outputs and switch all code on/off with echo
  • Write Markdown and named chunks with the options you need
  • Take data start to finish: plots → summary table → Welch’s t-test
  • Render one file to Word, PDF, and RevealJS slides
Note

✅ Key idea

From here on, every analysis can be a document that rebuilds itself from the raw data.

Tip

🧰 Keep leaf_report.qmd

It is your template for every analysis this term: copy it, change the data file and column names, rewrite the text, Render.

Up next — T-Tests I:

  • Where the t-statistic comes from, and why Welch’s is the safe default
  • Checking the assumptions first — normality (Shapiro–Wilk) and equal variances (Levene’s)
  • …written up in your Quarto report
